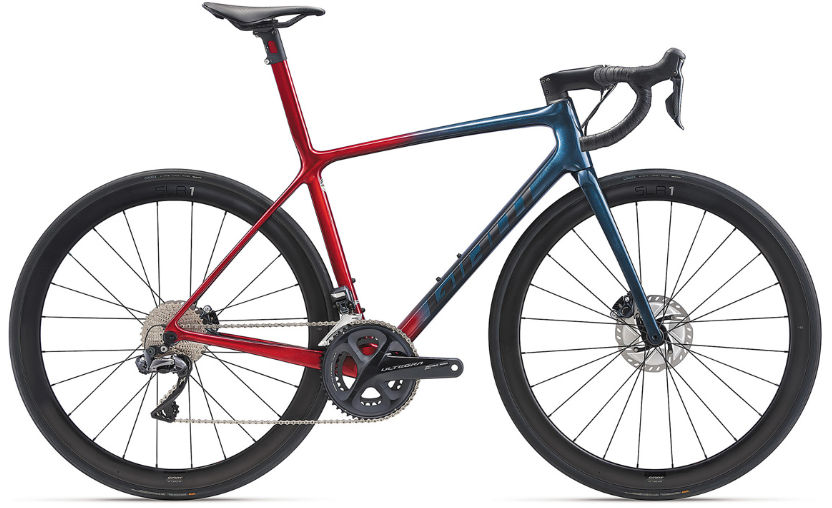

2021 Giant TCR Advanced SL Gen9 Disc geometry
Full frame geometry for the 2021 Giant TCR Advanced SL Gen9 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517 | 376 | 74.5 | 71 | 120 | 520 | 680 | 741 | 72 | 582 | 405 | 976 |
| S | 528 | 383 | 74 | 72.2 | 130 | 535 | 710 | 765 | 70 | 582 | 405 | 977 |
| M | 545 | 388 | 73.5 | 73 | 145 | 550 | 740 | 790 | 70 | 585 | 405 | 980 |
| ML | 562 | 393 | 73 | 73 | 165 | 565 | 770 | 817 | 67 | 595 | 405 | 991 |
| L | 581 | 402 | 73 | 73 | 185 | 580 | 800 | 842 | 67 | 610 | 405 | 1006 |
| XL | 596 | 412 | 72.5 | 73 | 200 | 600 | 830 | 866 | 67 | 624 | 405 | 1020 |
All measurements in millimetres unless marked (°) for angles.
