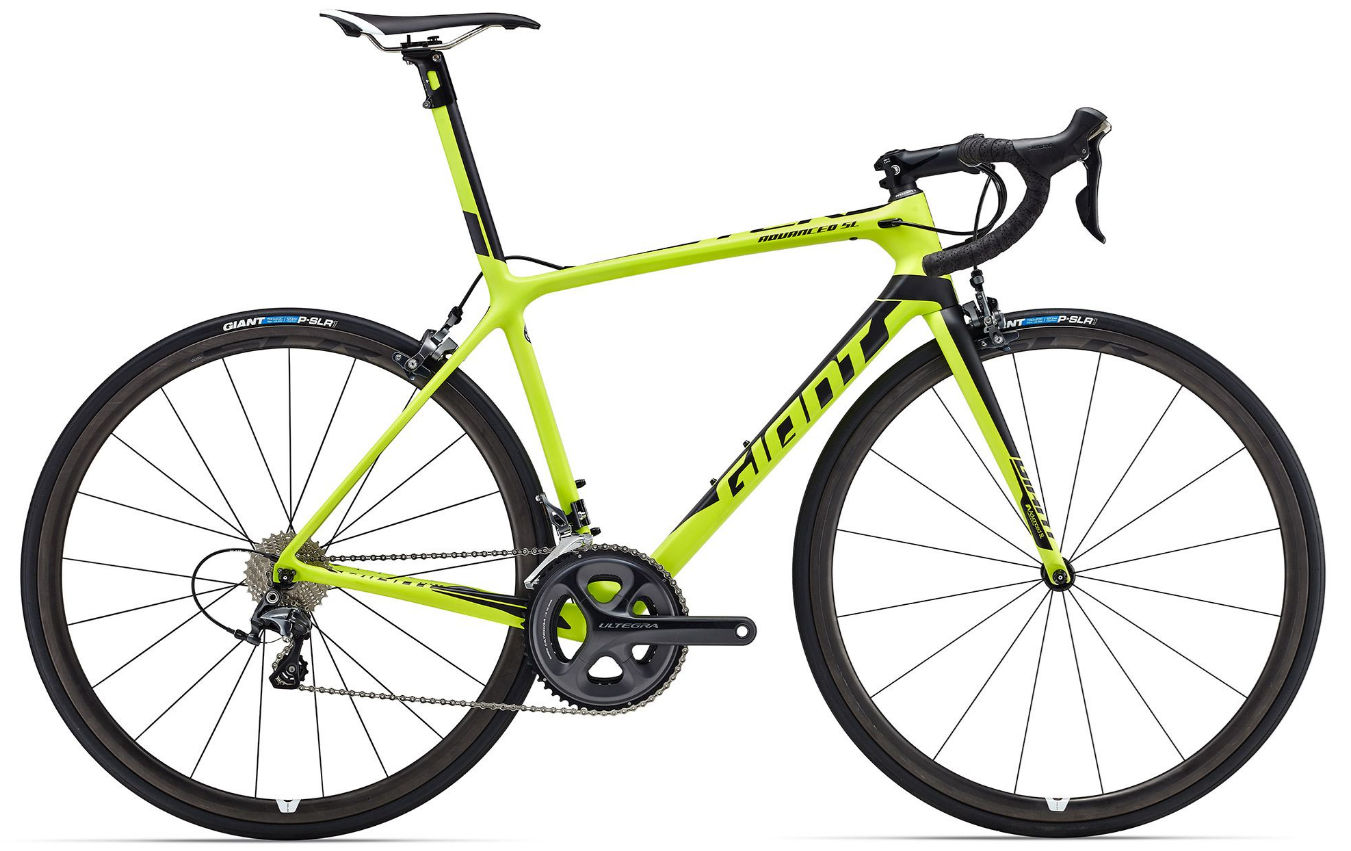

2013 Giant TCR Advanced SL Gen7 geometry
Full frame geometry for the 2013 Giant TCR Advanced SL Gen7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/43 | 515 | 371 | 74.5 | 71 | 120 | 515 | 724 | 68 | 574 | 405 | 972 | 43 | 70 |
| S/46.5 | 535 | 374 | 73.5 | 72 | 135 | 535 | 742 | 68 | 575 | 405 | 974 | 43 | 63 |
| M/50 | 555 | 384 | 73 | 73 | 150 | 555 | 765 | 68 | 581 | 405 | 980 | 43 | 57 |
| ML/53.5 | 569 | 391 | 72.5 | 73 | 170 | 570 | 787 | 68 | 590 | 405 | 986 | 43 | 57 |
| L/55.5 | 581 | 404 | 72.5 | 73 | 185 | 585 | 805 | 68 | 605 | 405 | 1001 | 43 | 57 |
| XL/58.5 | 595 | 413 | 72 | 73 | 200 | 605 | 823 | 68 | 619 | 405 | 1021 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
