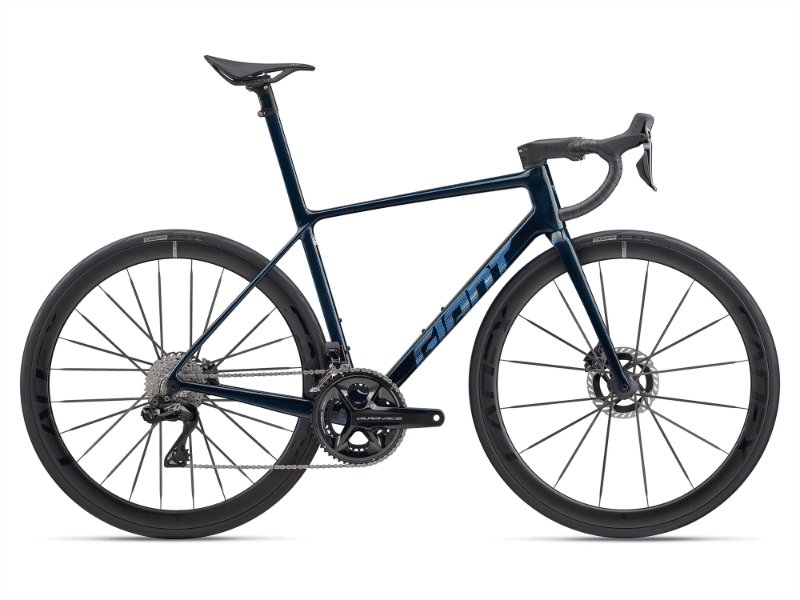

2026 Giant TCR Advanced SL Gen11 geometry

Name: 2026 Giant TCR Advanced SL Gen11
Brand: Giant

Full frame geometry for the 2026 Giant TCR Advanced SL Gen11, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
XS	517	376	74.5	71	120	520	680	719	72	405	976	45	72.1
S	528	383	74	72.3	130	535	710	734	70	405	977	45	64
M	545	388	73.5	73	145	550	740	752	70	405	980	45	59.2
ML	562	393	73	73	165	565	770	768	67	405	991	45	59.2
L	581	402	73	73	185	580	800	786	67	405	1006	45	59.2
XL	596	412	72.5	73	200	600	830	803	67	405	1020	45	59.2

All measurements in millimetres unless marked (°) for angles.
