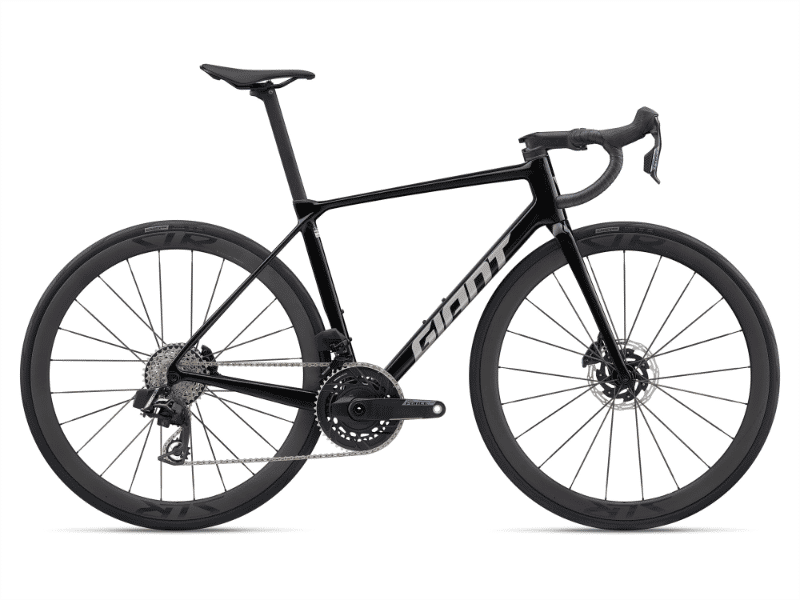

2026 Giant TCR Advanced Pro geometry
Full frame geometry for the 2026 Giant TCR Advanced Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517 | 376 | 74.5 | 71 | 120 | 520 | 425 | 719 | 72 | 405 | 976 | 45 | 72.1 |
| S | 528 | 383 | 74 | 72.3 | 130 | 535 | 445 | 734 | 70 | 405 | 977 | 45 | 64 |
| M | 545 | 388 | 73.5 | 73 | 145 | 550 | 470 | 752 | 70 | 405 | 980 | 45 | 59.2 |
| ML | 562 | 393 | 73 | 73 | 165 | 565 | 500 | 768 | 67 | 405 | 991 | 45 | 59.2 |
| L | 581 | 402 | 73 | 73 | 185 | 580 | 530 | 786 | 67 | 405 | 1006 | 45 | 59.2 |
| XL | 596 | 412 | 72.5 | 73 | 200 | 600 | 560 | 803 | 67 | 405 | 1020 | 45 | 59.2 |
All measurements in millimetres unless marked (°) for angles.
