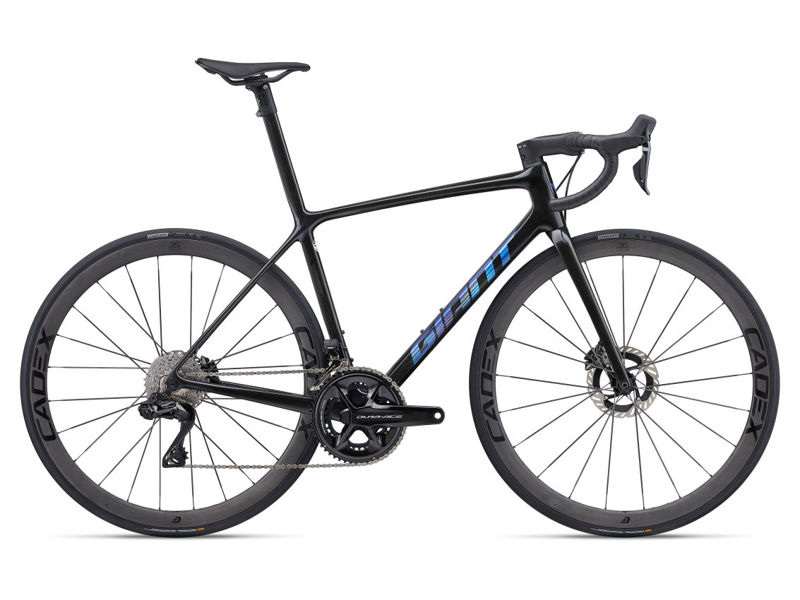

2024 Giant TCR Advance SL Disc geometry
Full frame geometry for the 2024 Giant TCR Advance SL Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 528 | 383 | 74 | 72.3 | 130 | 535 | 710 | 725 | 70 | 405 | 977 | 45 | 64 |
| M | 545 | 388 | 73.5 | 73 | 145 | 550 | 740 | 747 | 70 | 405 | 980 | 45 | 59.2 |
| ML | 562 | 393 | 73 | 73 | 165 | 565 | 770 | 773 | 67 | 405 | 991 | 45 | 59.2 |
| L | 581 | 402 | 73 | 73 | 185 | 580 | 800 | 800 | 67 | 405 | 1006 | 45 | 59.2 |
All measurements in millimetres unless marked (°) for angles.
