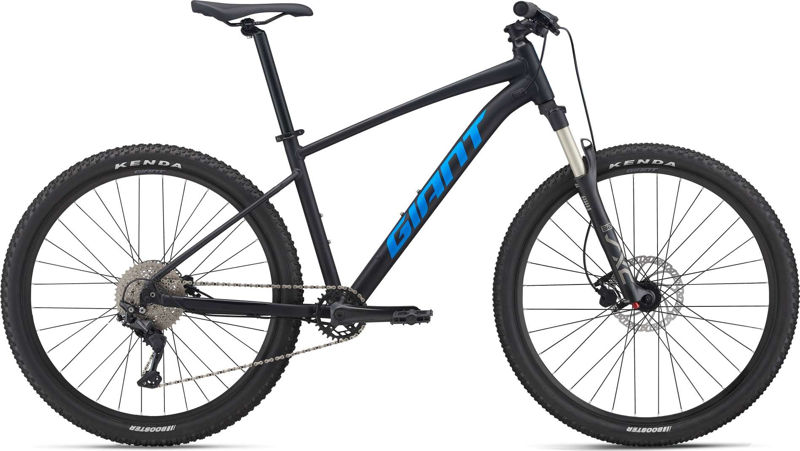

2022 Giant Talon Series geometry
Full frame geometry for the 2022 Giant Talon Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS (27.5") | 533 | 385 | 74 | 67.5 | 95 | 544 | 350 | 686 | 45 | 440 | 1079 | 42 | 103 |
| S (27.5") | 571 | 405 | 74 | 67.5 | 115 | 569 | 385 | 711 | 45 | 440 | 1106 | 42 | 103 |
| S (29") | 602 | 404 | 74 | 68.5 | 95 | 577 | 390 | 732 | 55 | 455 | 1126 | 51 | 94 |
| M (29") | 611 | 424 | 74 | 68.5 | 105 | 599 | 440 | 766 | 55 | 455 | 1150 | 51 | 94 |
| L (29") | 630 | 439 | 74 | 68.5 | 125 | 620 | 490 | 805 | 55 | 455 | 1172 | 51 | 94 |
| XL (29") | 644 | 454 | 74 | 68.5 | 140 | 639 | 535 | 839 | 55 | 455 | 1192 | 51 | 94 |
All measurements in millimetres unless marked (°) for angles.
