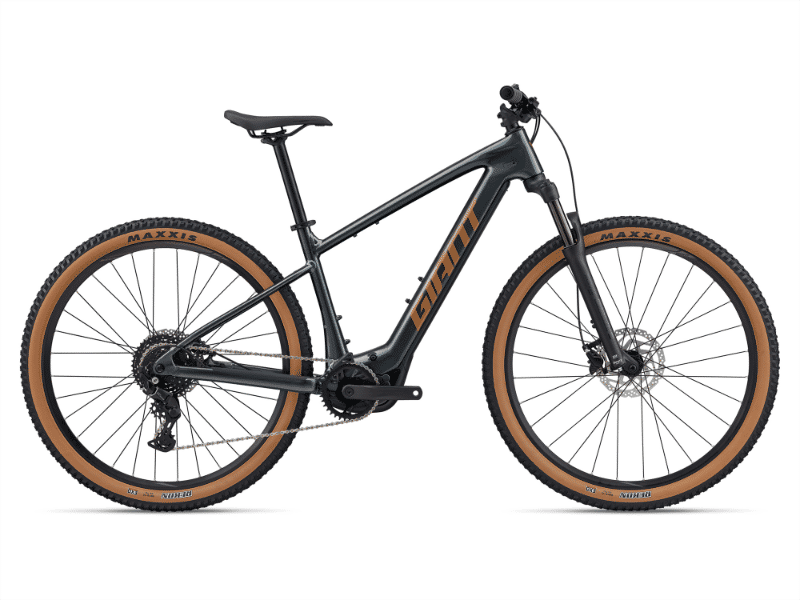

2026 Giant Talon E+ geometry
Full frame geometry for the 2026 Giant Talon E+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 613 | 404 | 78 | 68 | 100 | 580 | 385 | 723 | 60 | 470 | 1144 | 46 |
| M | 627 | 420 | 74 | 68 | 115 | 600 | 435 | 753 | 60 | 470 | 1165 | 46 |
| L | 641 | 436 | 74 | 68 | 130 | 620 | 485 | 788 | 60 | 470 | 1187 | 46 |
| XL | 655 | 452 | 74 | 68 | 145 | 640 | 535 | 808 | 60 | 470 | 1209 | 46 |
All measurements in millimetres unless marked (°) for angles.
