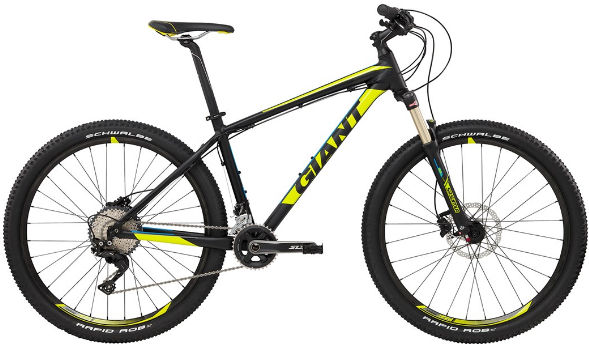

2017 Giant Talon 27.5 MKII geometry
Full frame geometry for the 2017 Giant Talon 27.5 MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 578 | 374 | 73.5 | 68 | 100 | 545 | 679 | 440 | 1072 |
| S | 583 | 397 | 73.5 | 68 | 105 | 570 | 704 | 440 | 1098 |
| M | 592 | 414 | 73 | 68 | 115 | 595 | 732 | 440 | 1118 |
| L | 606 | 430 | 73 | 68 | 130 | 615 | 769 | 440 | 1139 |
| XL | 620 | 445 | 72.5 | 68 | 145 | 640 | 806 | 440 | 1160 |
All measurements in millimetres unless marked (°) for angles.
