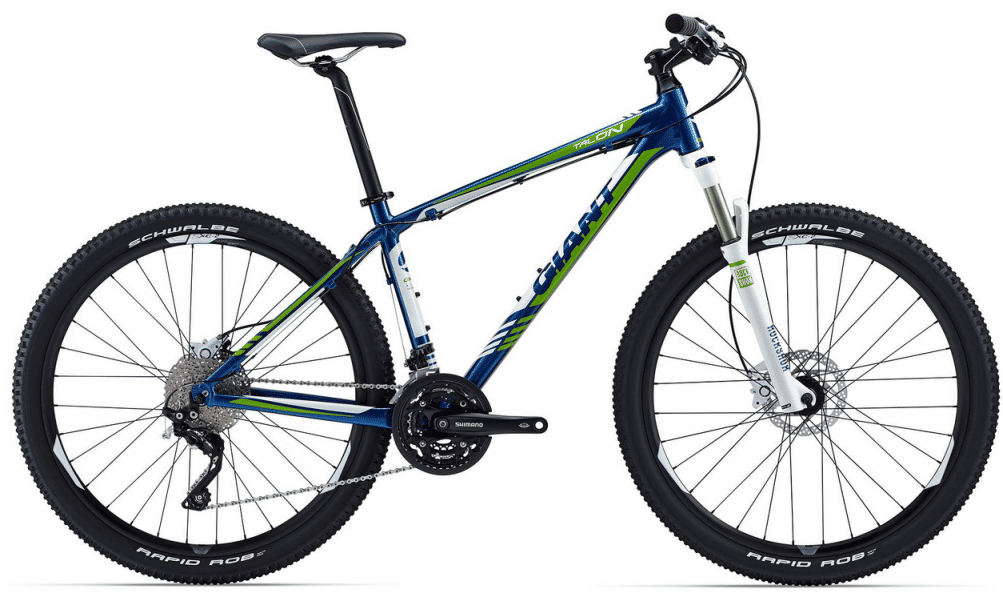

2015 Giant Talon 27.5 MKI geometry
Full frame geometry for the 2015 Giant Talon 27.5 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S/16 | 608 | 389 | 73.5 | 70 | 104 | 569 | 709 | 48 | 439 | 1072 |
| M/18 | 617 | 405 | 73 | 70 | 114 | 594 | 734 | 48 | 439 | 1092 |
| L/20 | 632 | 422 | 73 | 70 | 130 | 615 | 772 | 48 | 439 | 1113 |
| XL/22 | 646 | 436 | 72.5 | 70 | 145 | 640 | 808 | 48 | 439 | 1133 |
All measurements in millimetres unless marked (°) for angles.
