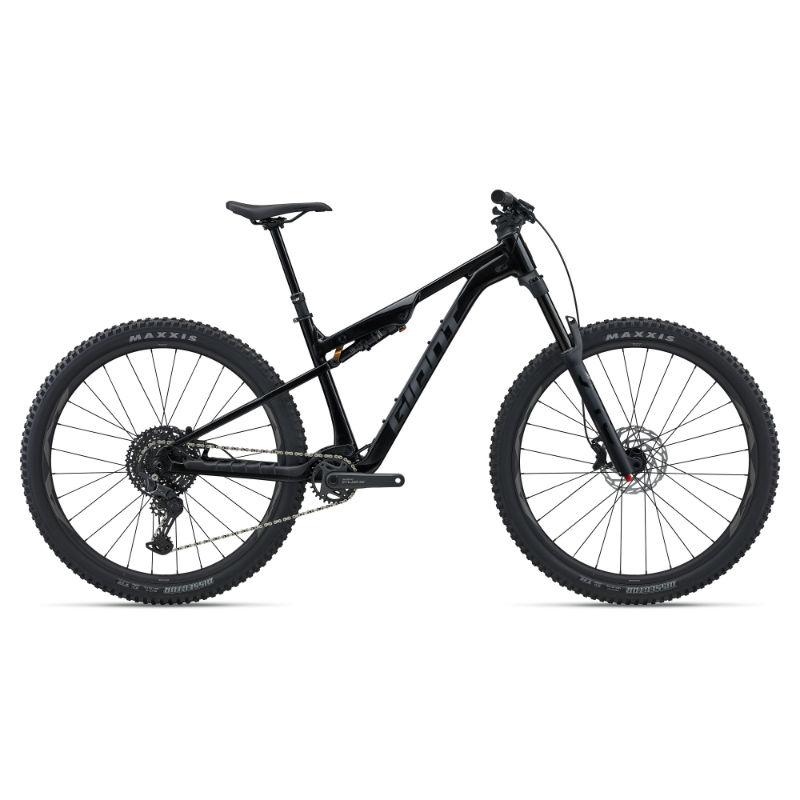

2026 Giant Stance geometry
Full frame geometry for the 2026 Giant Stance, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 608.7 | 407.4 | 77 | 65 | 90 | 548.1 | 380 | 757 | 25 | 440 | 1158.1 | 44 | 129 |
| S | 610 | 422 | 76.5 | 65 | 95 | 568 | 400 | 747 | 40 | 442 | 1176 | 44 | 129 |
| M | 615 | 454 | 76.5 | 65 | 100 | 602 | 425 | 747 | 40 | 442 | 1210 | 44 | 129 |
| L | 628 | 477 | 76.5 | 65 | 115 | 628 | 450 | 747 | 40 | 442 | 1239 | 44 | 129 |
| XL | 633 | 509 | 76.5 | 65 | 120 | 661 | 475 | 747 | 40 | 442 | 1274 | 44 | 129 |
All measurements in millimetres unless marked (°) for angles.
