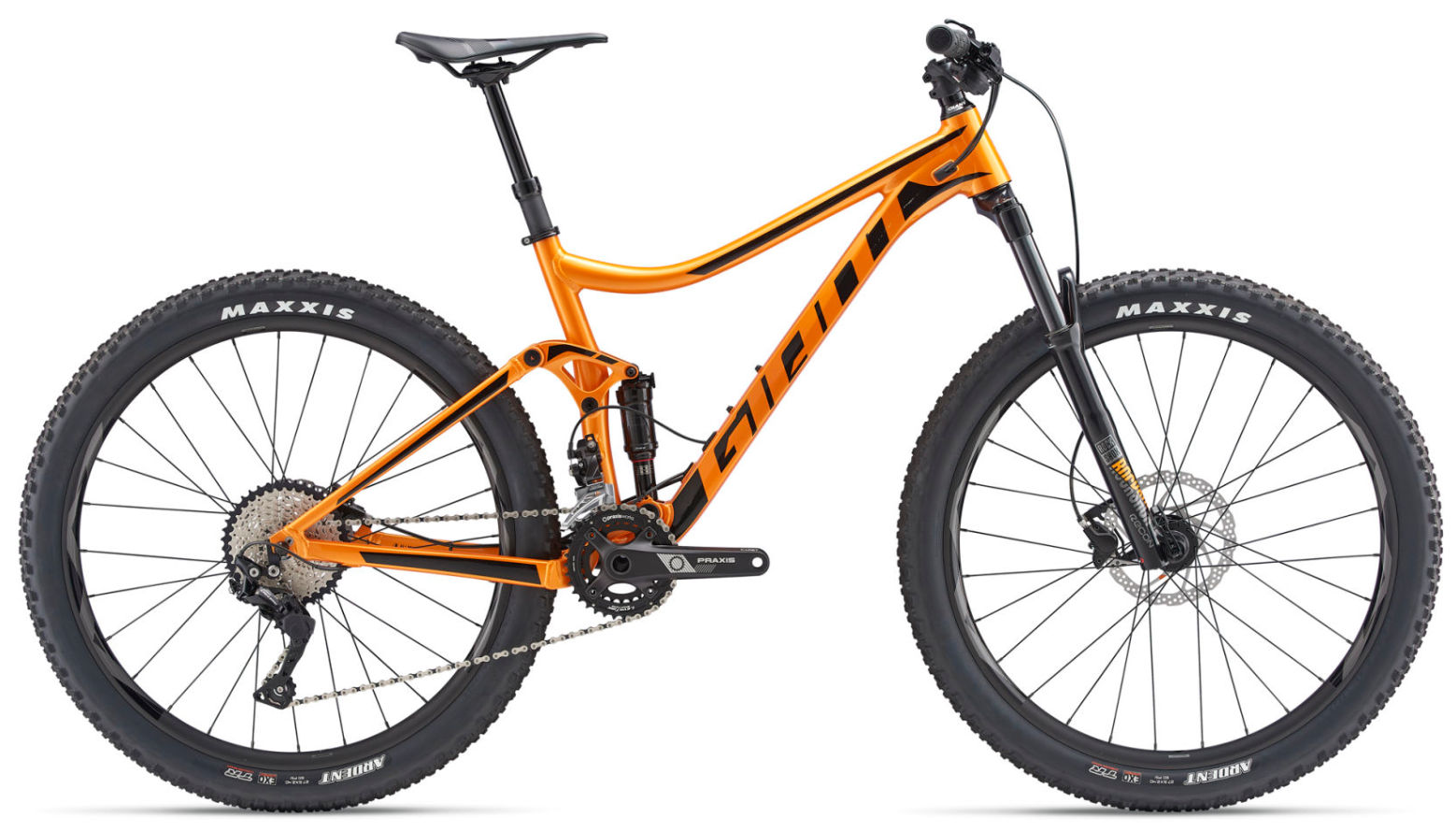

2019 Giant Stance MK II geometry
Full frame geometry for the 2019 Giant Stance MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 566 | 423 | 74 | 67.5 | 100 | 585 | 400 | 20 | 696 | 435 | 1130 | 43 | 104 |
| XS | 566 | 403 | 74 | 67.5 | 100 | 565 | 390 | 20 | 676 | 435 | 1110 | 43 | 104 |
| M | 571 | 441 | 74 | 67.5 | 105 | 605 | 431 | 20 | 717 | 435 | 1151 | 43 | 104 |
| L | 594 | 455 | 74 | 67.5 | 130 | 625 | 482 | 20 | 740 | 435 | 1174 | 43 | 104 |
| XL | 608 | 471 | 74 | 67.5 | 145 | 645 | 507 | 20 | 761 | 435 | 1195 | 43 | 104 |
All measurements in millimetres unless marked (°) for angles.
