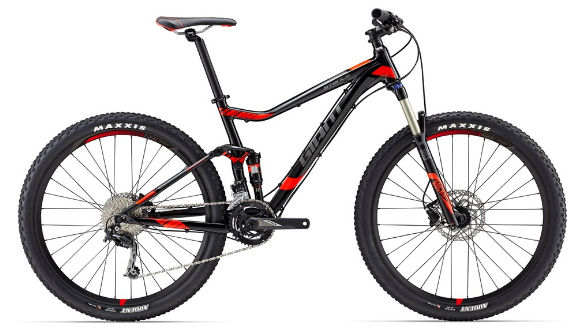

2017 Giant Stance MK I geometry
Full frame geometry for the 2017 Giant Stance MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 564 | 408 | 73.5 | 68 | 99 | 575 | 400 | 724 | 17 | 677 | 434 | 1110 | 42 | 97 |
| XS | 564 | 393 | 74 | 68 | 99 | 555 | 390 | 726 | 17 | 662 | 434 | 1095 | 42 | 97 |
| M | 569 | 426 | 73.5 | 68 | 104 | 595 | 431 | 711 | 17 | 697 | 434 | 1130 | 42 | 97 |
| L | 582 | 442 | 73.5 | 68 | 119 | 615 | 482 | 747 | 17 | 718 | 434 | 1151 | 42 | 97 |
| XL | 596 | 458 | 73.5 | 68 | 135 | 635 | 507 | 770 | 17 | 740 | 434 | 1173 | 42 | 97 |
All measurements in millimetres unless marked (°) for angles.
