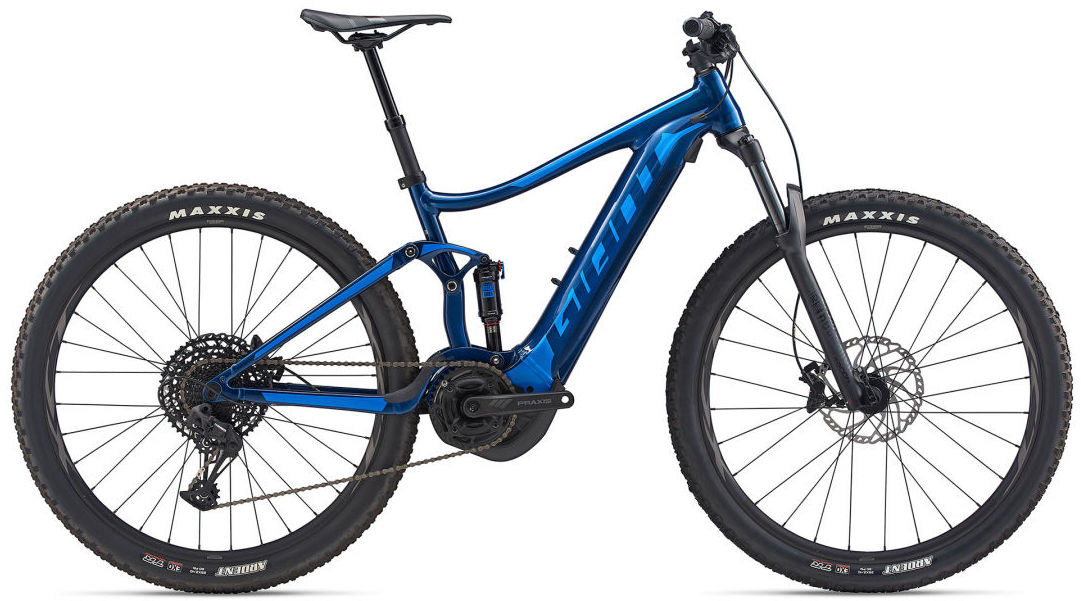

2020 Giant Stance E+ 29 geometry
Full frame geometry for the 2020 Giant Stance E+ 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 590 | 405 | 73.5 | 67 | 100 | 580 | 406 | 731 | 20 | 698 | 465 | 1162 | 51 | 107 |
| M | 599 | 422 | 73.5 | 67 | 110 | 600 | 432 | 746 | 20 | 719 | 465 | 1183 | 51 | 107 |
| L | 608 | 444 | 73.5 | 67 | 120 | 625 | 482 | 778 | 20 | 745 | 465 | 1209 | 51 | 107 |
| XL | 622 | 465 | 73.5 | 67 | 135 | 650 | 507 | 781 | 20 | 772 | 465 | 1236 | 51 | 107 |
All measurements in millimetres unless marked (°) for angles.
