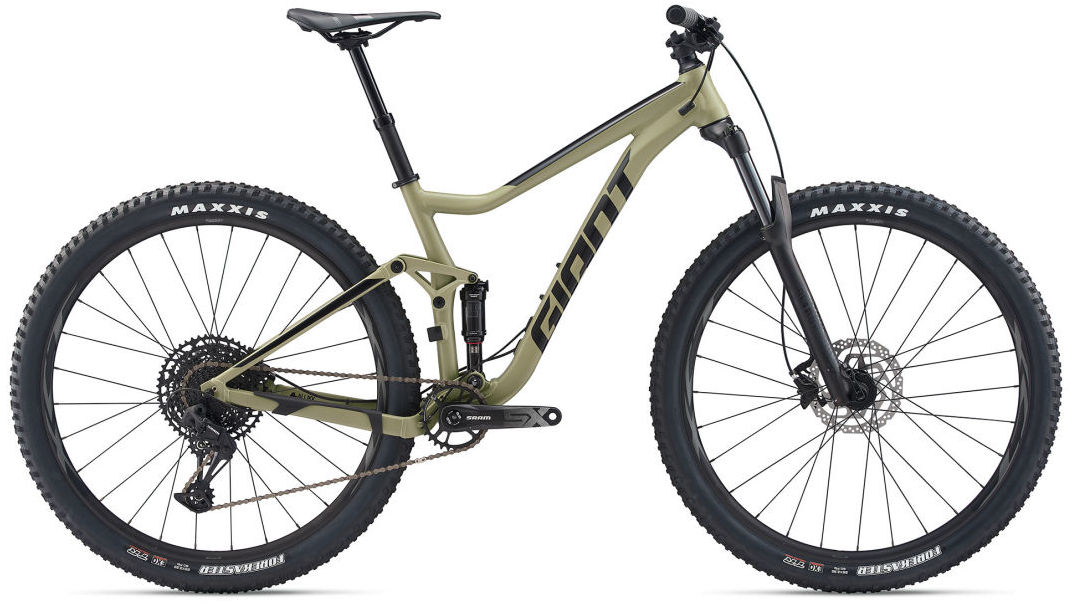

2020 Giant Stance 29 geometry
Full frame geometry for the 2020 Giant Stance 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 612 | 429 | 75 | 67.5 | 100 | 593 | 431 | 734 | 40 | 722 | 438 | 1157 | 51 | 100 |
| S | 612 | 406 | 75 | 67.5 | 100 | 570 | 380 | 730 | 40 | 699 | 438 | 1134 | 51 | 100 |
| L | 635 | 454 | 75 | 67.5 | 125 | 624 | 482 | 763 | 40 | 757 | 438 | 1192 | 51 | 100 |
| XL | 668 | 471 | 75 | 67.5 | 140 | 645 | 507 | 782 | 40 | 780 | 438 | 1215 | 51 | 100 |
All measurements in millimetres unless marked (°) for angles.
