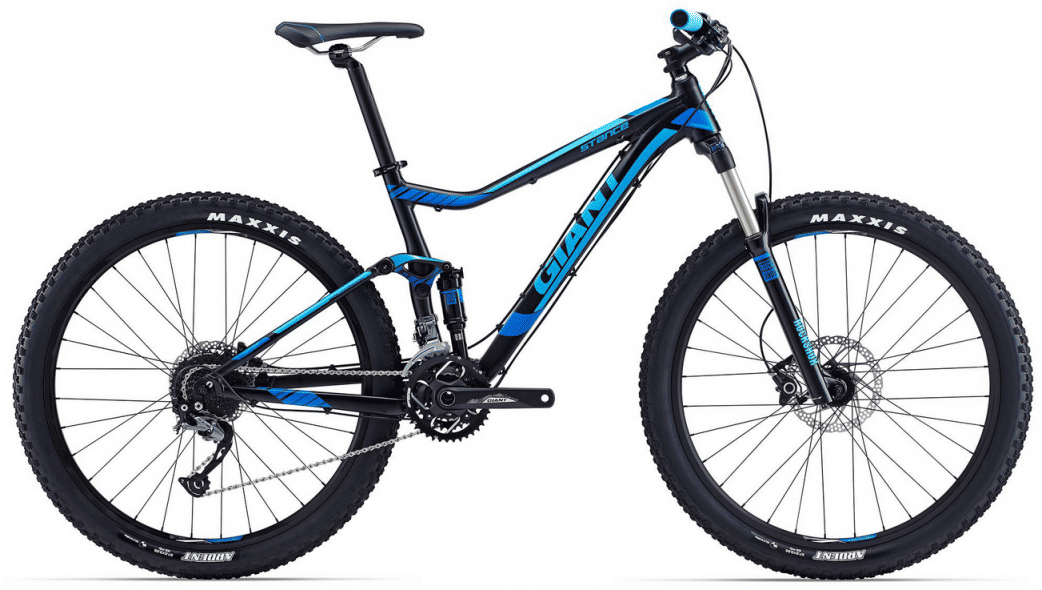

2015 Giant Stance 27.5 geometry
Full frame geometry for the 2015 Giant Stance 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 583 | 401 | 73.5 | 68 | 99 | 574 | 724 | 17 | 434 | 1110 |
| XS/14.5 | 583 | 389 | 74 | 68 | 99 | 556 | 726 | 17 | 434 | 1095 |
| M/17 | 588 | 420 | 73.5 | 68 | 104 | 594 | 711 | 17 | 434 | 1130 |
| L/19 | 602 | 437 | 73.5 | 68 | 119 | 615 | 747 | 17 | 434 | 1151 |
| XL/22 | 616 | 452 | 73.5 | 68 | 135 | 635 | 770 | 17 | 434 | 1173 |
All measurements in millimetres unless marked (°) for angles.
