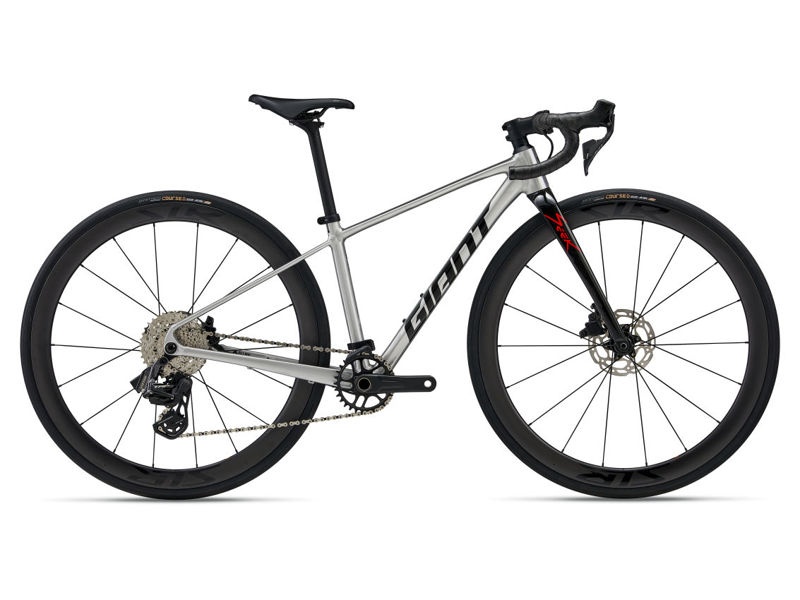

2025 Giant Seek 1 geometry
Full frame geometry for the 2025 Giant Seek 1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| One | 477 | 326 | 78 | 70.6 | 88 | 427 | 610 | 400 | 918 |
All measurements in millimetres unless marked (°) for angles.
