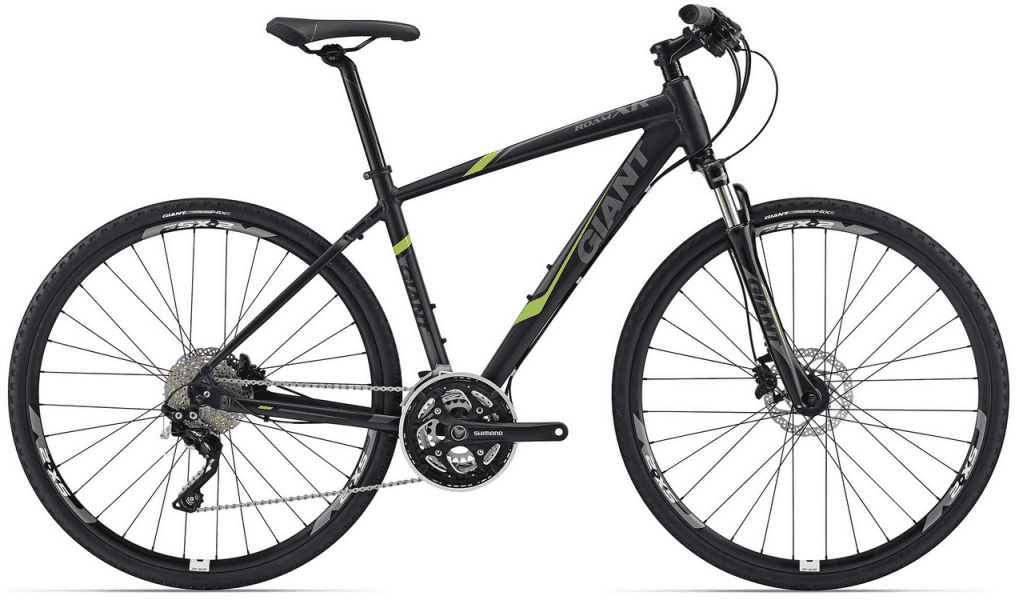

2015 Giant Roam XR 1 geometry
Full frame geometry for the 2015 Giant Roam XR 1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/17 | 583 | 394 | 73 | 71 | 109 | 572 | 762 | 68 | 621 | 447 | 1064 | 45 | 73 |
| M/19 | 588 | 399 | 73 | 71 | 114 | 579 | 785 | 68 | 628 | 447 | 1082 | 45 | 73 |
| L/21 | 593 | 416 | 73 | 71 | 119 | 597 | 813 | 68 | 646 | 447 | 1097 | 45 | 73 |
| XL/23 | 597 | 427 | 73 | 71 | 124 | 610 | 841 | 68 | 659 | 447 | 1118 | 45 | 73 |
All measurements in millimetres unless marked (°) for angles.
