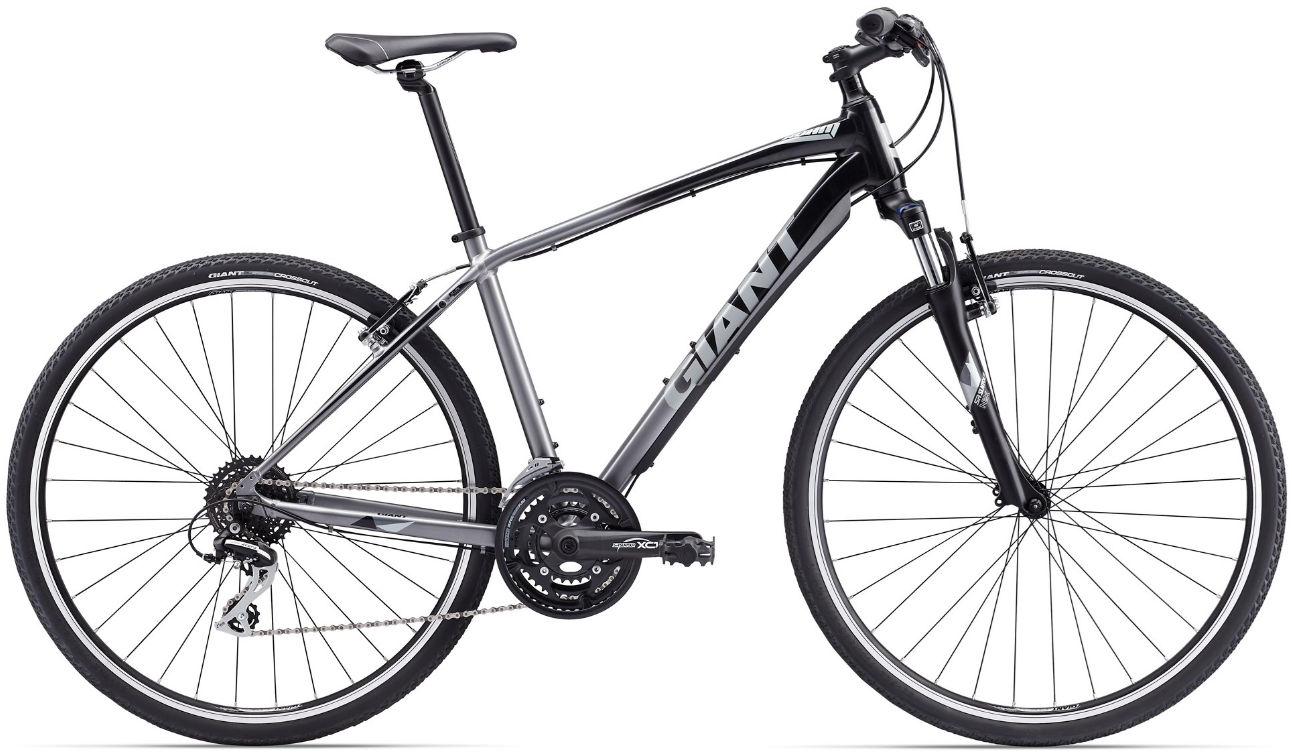

2017 Giant Roam MKII geometry
Full frame geometry for the 2017 Giant Roam MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 558 | 403 | 73 | 70.5 | 95 | 580 | 701 | 455 | 1086 |
| S | 596 | 408 | 73 | 70.5 | 115 | 590 | 727 | 455 | 1096 |
| M | 611 | 413 | 73 | 70.5 | 130 | 600 | 752 | 455 | 1107 |
| L | 625 | 419 | 73 | 70.5 | 145 | 610 | 781 | 455 | 1118 |
| XL | 639 | 425 | 73 | 70.5 | 160 | 620 | 809 | 455 | 1128 |
All measurements in millimetres unless marked (°) for angles.
