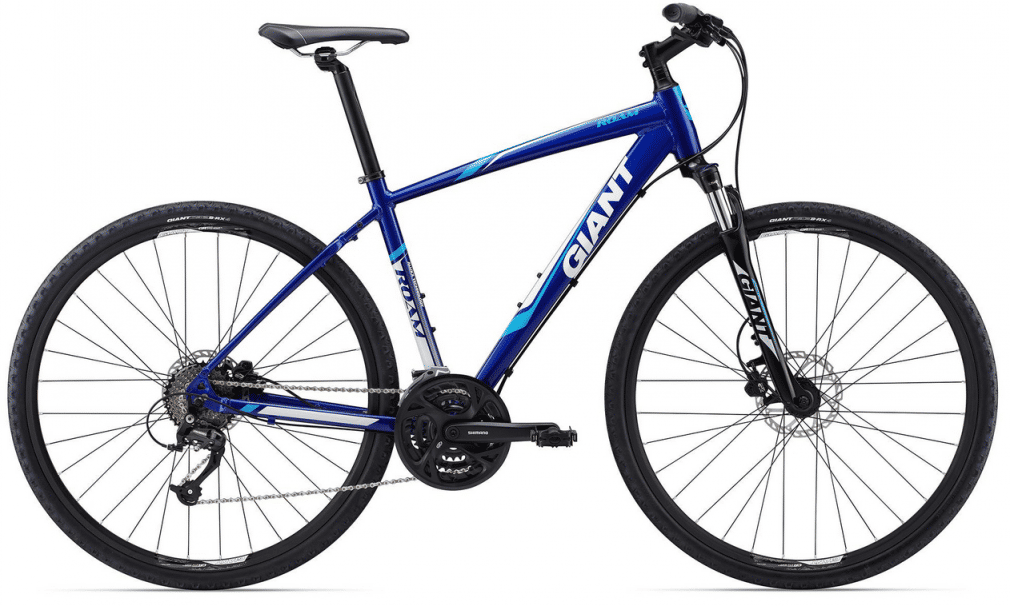

2015 Giant Roam MKI geometry
Full frame geometry for the 2015 Giant Roam MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/16 | 616 | 387 | 73.5 | 69.5 | 150 | 569 | 744 | 68 | 642 | 455 | 1090 | 45 | 83 |
| M/18 | 630 | 397 | 73.5 | 69.5 | 165 | 584 | 782 | 68 | 658 | 455 | 1105 | 45 | 83 |
| L/20 | 648 | 407 | 73.5 | 69.5 | 185 | 599 | 808 | 68 | 674 | 455 | 1120 | 45 | 83 |
| XL/22 | 663 | 418 | 73.5 | 69.5 | 201 | 615 | 833 | 68 | 691 | 455 | 1138 | 45 | 83 |
All measurements in millimetres unless marked (°) for angles.
