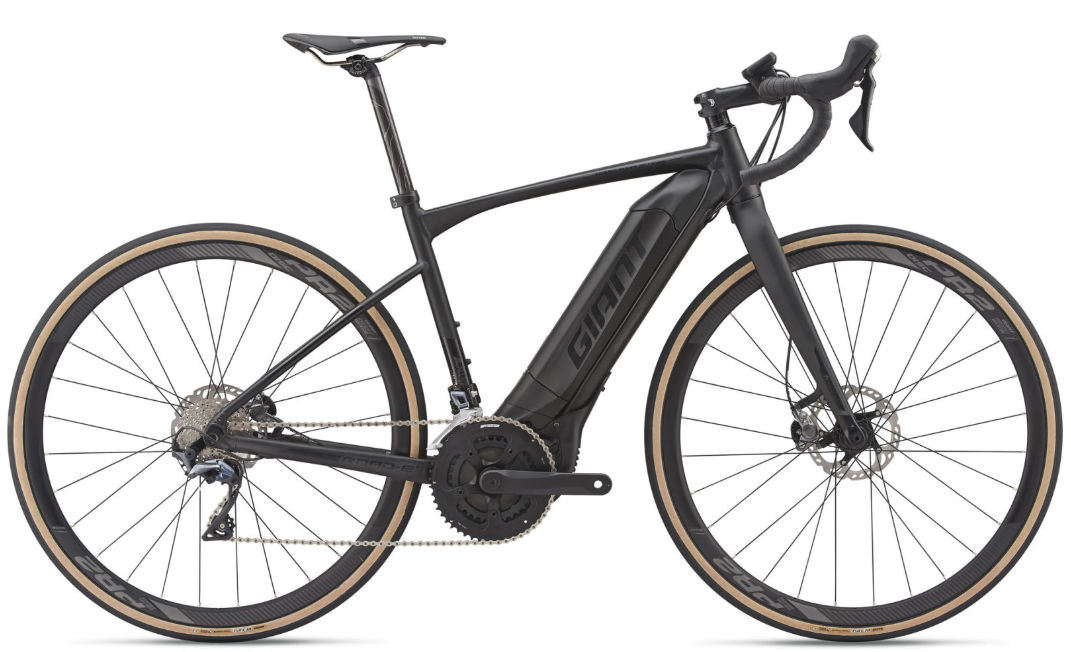

2019 Giant Road-E+ Pro geometry
Full frame geometry for the 2019 Giant Road-E+ Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 546 | 373 | 74 | 71.5 | 95 | 530 | 445 | 752 | 70 | 582 | 455 | 1027 | 42 | 76 |
| M | 565 | 377 | 73.5 | 71.5 | 115 | 545 | 485 | 785 | 70 | 592 | 455 | 1037 | 42 | 76 |
| L | 598 | 387 | 73 | 71.5 | 150 | 570 | 530 | 818 | 70 | 612 | 455 | 1058 | 42 | 76 |
| XL | 627 | 397 | 72.5 | 71.5 | 180 | 595 | 565 | 846 | 70 | 632 | 455 | 1078 | 42 | 76 |
All measurements in millimetres unless marked (°) for angles.
