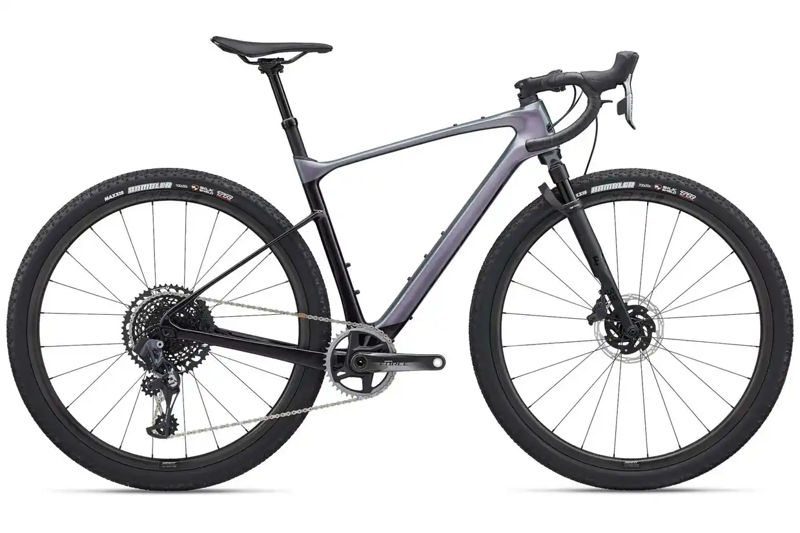

2023 Giant Revolt X geometry
Full frame geometry for the 2023 Giant Revolt X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 560 | 387 | 73.4 | 70.9 | 100 | 553 | 450 | 737 | 69 | 435 | 1034 | 50 | 80.3 |
| M | 576 | 389 | 73.4 | 71.4 | 115 | 560 | 470 | 756 | 69 | 435 | 1036 | 50 | 76.8 |
| ML | 592 | 393 | 72.9 | 71.9 | 130 | 575 | 490 | 773 | 69 | 435 | 1041 | 50 | 73.4 |
| L | 607 | 399 | 72.9 | 71.9 | 145 | 585 | 510 | 792 | 69 | 435 | 1051 | 50 | 73.4 |
| XL | 621 | 410 | 72.9 | 71.9 | 160 | 600 | 530 | 810 | 69 | 435 | 1067 | 50 | 73.4 |
All measurements in millimetres unless marked (°) for angles.
