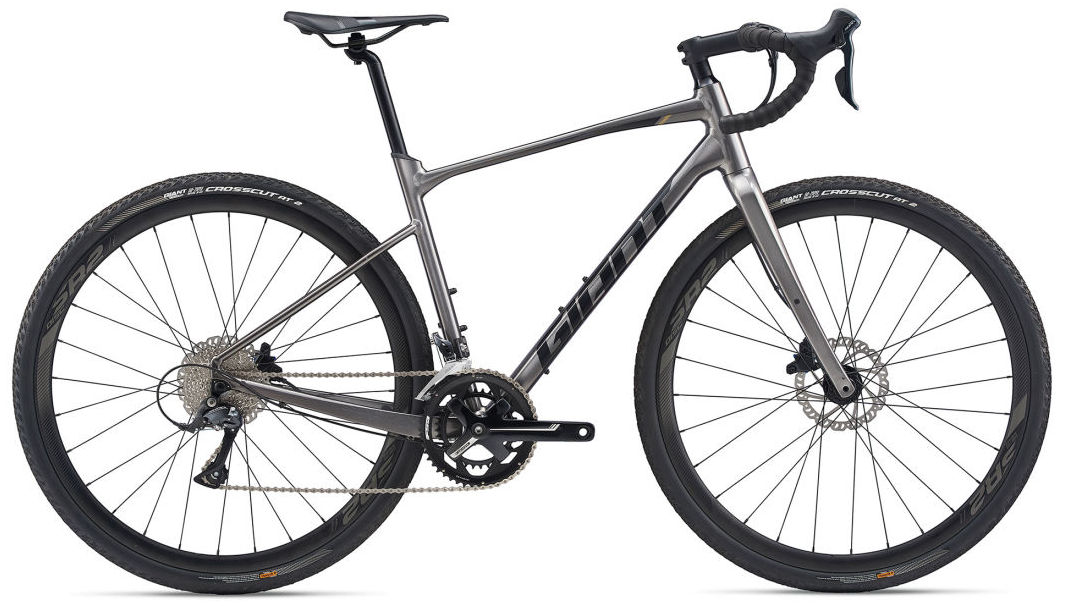

2020 Giant Revolt MKII geometry
Full frame geometry for the 2020 Giant Revolt MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 548 | 373 | 74 | 70.5 | 125 | 530 | 430 | 714 | 70 | 600 | 430 | 1020 | 50 | 75 |
| S | 558 | 375 | 73.5 | 70.5 | 135 | 540 | 450 | 729 | 70 | 605 | 430 | 1025 | 50 | 75 |
| M | 572 | 381 | 73.5 | 70.5 | 150 | 550 | 470 | 746 | 70 | 616 | 430 | 1036 | 50 | 75 |
| ML | 588 | 385 | 73 | 71 | 165 | 565 | 490 | 763 | 70 | 621 | 430 | 1041 | 50 | 72 |
| L | 601 | 391 | 73 | 71 | 180 | 575 | 510 | 780 | 70 | 631 | 430 | 1051 | 50 | 72 |
| XL | 615 | 402 | 73 | 71 | 195 | 590 | 530 | 797 | 70 | 647 | 430 | 1067 | 50 | 72 |
All measurements in millimetres unless marked (°) for angles.
