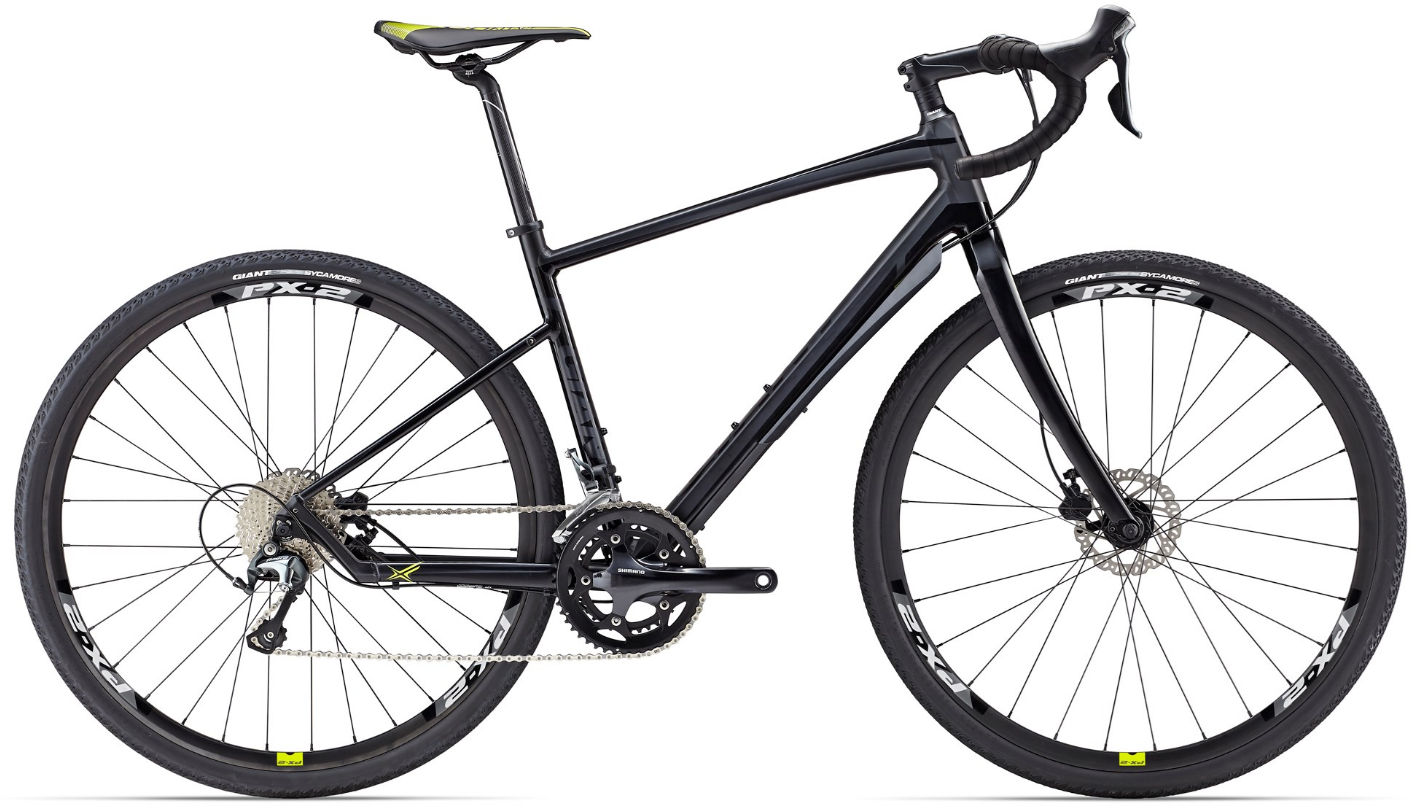

2017 Giant Revolt MKI geometry
Full frame geometry for the 2017 Giant Revolt MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 555 | 386 | 73.5 | 70 | 120 | 550 | 430 | 712 | 65 | 620 | 440 | 1052 | 50 | 76 |
| S | 569 | 386 | 73.5 | 70 | 135 | 555 | 450 | 729 | 65 | 626 | 440 | 1058 | 50 | 76 |
| M | 590 | 390 | 73.5 | 70.5 | 155 | 565 | 470 | 748 | 65 | 632 | 440 | 1064 | 50 | 72 |
| ML | 604 | 385 | 73 | 70.5 | 170 | 570 | 490 | 765 | 65 | 632 | 440 | 1064 | 50 | 72 |
| L | 618 | 385 | 72.5 | 70.5 | 185 | 580 | 510 | 781 | 65 | 637 | 440 | 1069 | 50 | 72 |
| XL | 632 | 385 | 72.5 | 70.5 | 200 | 585 | 530 | 799 | 65 | 643 | 440 | 1075 | 50 | 72 |
All measurements in millimetres unless marked (°) for angles.
