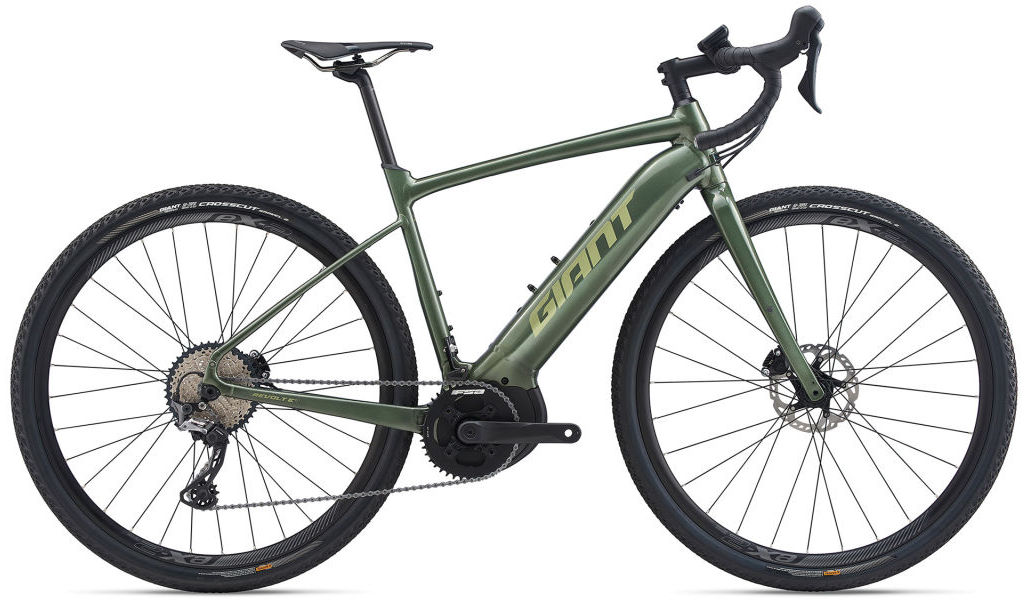

2020 Giant Revolt E+ geometry
Full frame geometry for the 2020 Giant Revolt E+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 558 | 380 | 73.5 | 71 | 135 | 545 | 450 | 732 | 70 | 604 | 455 | 1050 | 50 | 69 |
| M | 572 | 380 | 73 | 71 | 150 | 555 | 475 | 753 | 70 | 609 | 455 | 1055 | 50 | 69 |
| L | 600 | 391 | 73 | 71 | 180 | 575 | 525 | 793 | 70 | 631 | 455 | 1077 | 50 | 69 |
| XL | 614 | 402 | 73 | 71 | 195 | 590 | 550 | 813 | 70 | 646 | 455 | 1092 | 50 | 69 |
All measurements in millimetres unless marked (°) for angles.
