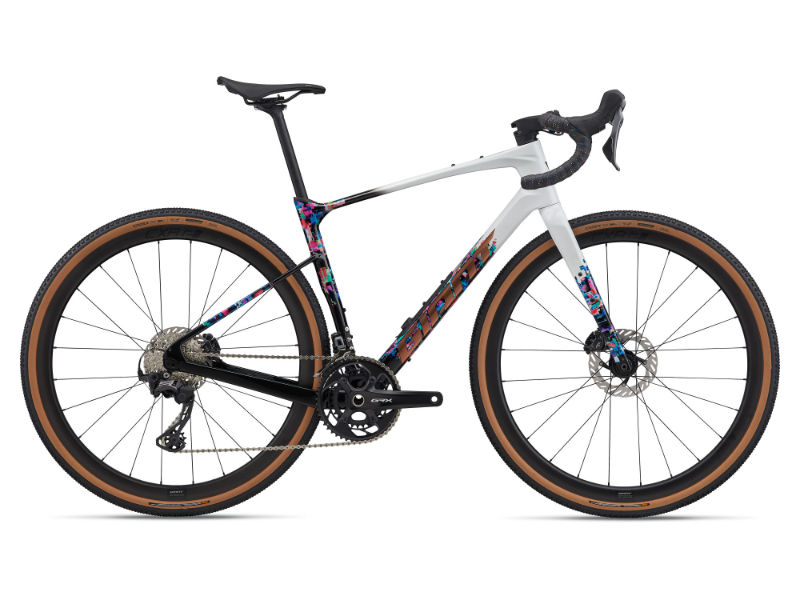

2026 Giant Revolt Advanced SE geometry
Full frame geometry for the 2026 Giant Revolt Advanced SE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 556 | 381 | 74 | 70 | 125 | 540 | 430 | 724 | 80 | 425 | 1024 | 50 | 78 |
| S | 570 | 381 | 73.5 | 71 | 135 | 550 | 450 | 740 | 80 | 425 | 1020 | 50 | 72 |
| M | 586 | 387 | 73.5 | 71.5 | 150 | 560 | 470 | 757 | 80 | 425 | 1026 | 50 | 68 |
| ML | 602 | 391 | 73 | 72 | 165 | 575 | 490 | 774 | 80 | 425 | 1031 | 50 | 65 |
| L | 616 | 397 | 73 | 72 | 180 | 585 | 510 | 791 | 80 | 425 | 1041 | 50 | 65 |
| XL | 630 | 407 | 73 | 72 | 195 | 600 | 530 | 807 | 80 | 425 | 1056 | 50 | 65 |
All measurements in millimetres unless marked (°) for angles.
