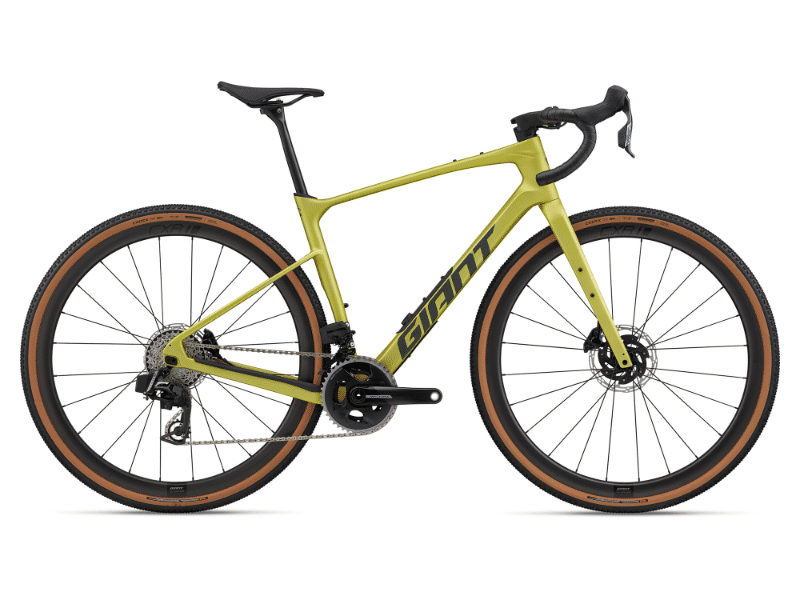

2026 Giant Revolt Advanced Pro geometry
Full frame geometry for the 2026 Giant Revolt Advanced Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 556 | 381 | 74 | 70 | 124 | 541 | 429 | 79 | 424 | 1024 |
| S | 569 | 381 | 73.5 | 71 | 135 | 551 | 450 | 79 | 424 | 1021 |
| M | 587 | 386 | 73.5 | 71.5 | 150 | 559 | 470 | 79 | 424 | 1026 |
| ML | 602 | 391 | 73 | 72 | 165 | 574 | 490 | 79 | 424 | 1031 |
| L | 617 | 396 | 73 | 72 | 180 | 584 | 511 | 79 | 424 | 1041 |
| XL | 630 | 406 | 73 | 72 | 196 | 599 | 531 | 79 | 424 | 1057 |
All measurements in millimetres unless marked (°) for angles.
