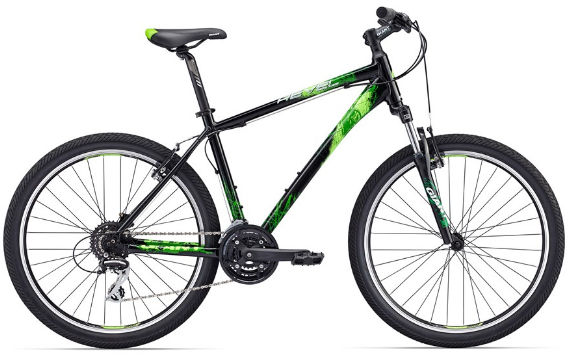

2017 Giant Revel geometry
Full frame geometry for the 2017 Giant Revel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XXS | 566 | 358 | 74 | 68 | 110 | 520 | 604 | 425 | 1038 |
| XS | 580 | 358 | 72.5 | 69 | 120 | 540 | 627 | 425 | 1032 |
| S | 589 | 379 | 72.5 | 69 | 130 | 565 | 674 | 425 | 1058 |
| M | 603 | 391 | 72.5 | 69 | 145 | 582 | 723 | 425 | 1076 |
| L | 617 | 399 | 72 | 69 | 160 | 600 | 769 | 425 | 1089 |
| XL | 636 | 408 | 72 | 69 | 180 | 615 | 794 | 425 | 1105 |
| XXL | 655 | 417 | 72 | 69 | 200 | 630 | 824 | 425 | 1121 |
All measurements in millimetres unless marked (°) for angles.
