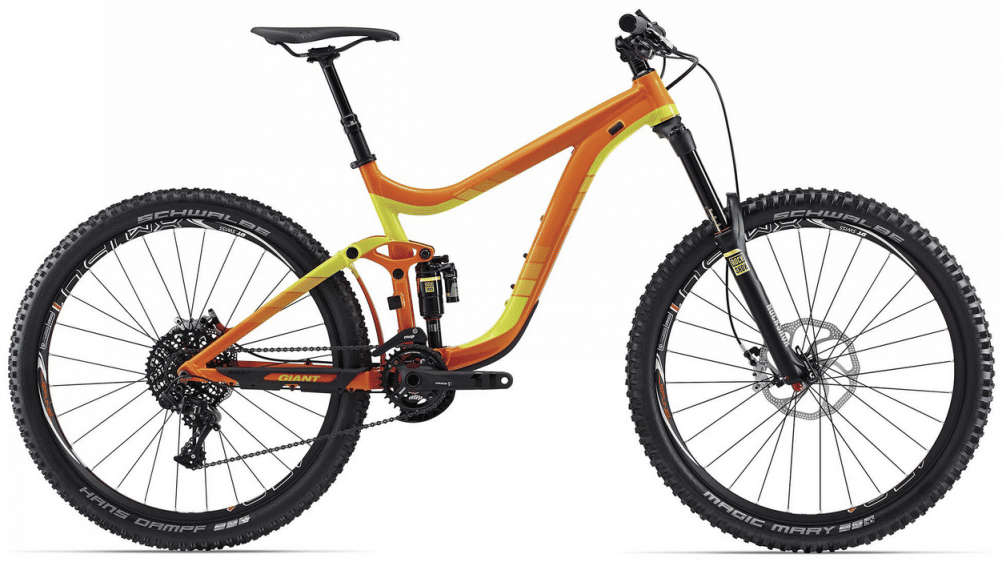

2015 Giant Reign MKI geometry
Full frame geometry for the 2015 Giant Reign MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 596 | 438 | 73 | 65 | 94 | 620 | 714 | 6 | 434 | 1191 |
| S | 596 | 402 | 73 | 65 | 94 | 584 | 716 | 6 | 434 | 1158 |
| L | 614 | 452 | 73 | 65 | 114 | 640 | 732 | 6 | 434 | 1217 |
| XL | 623 | 475 | 73 | 65 | 124 | 665 | 739 | 6 | 434 | 1242 |
All measurements in millimetres unless marked (°) for angles.
