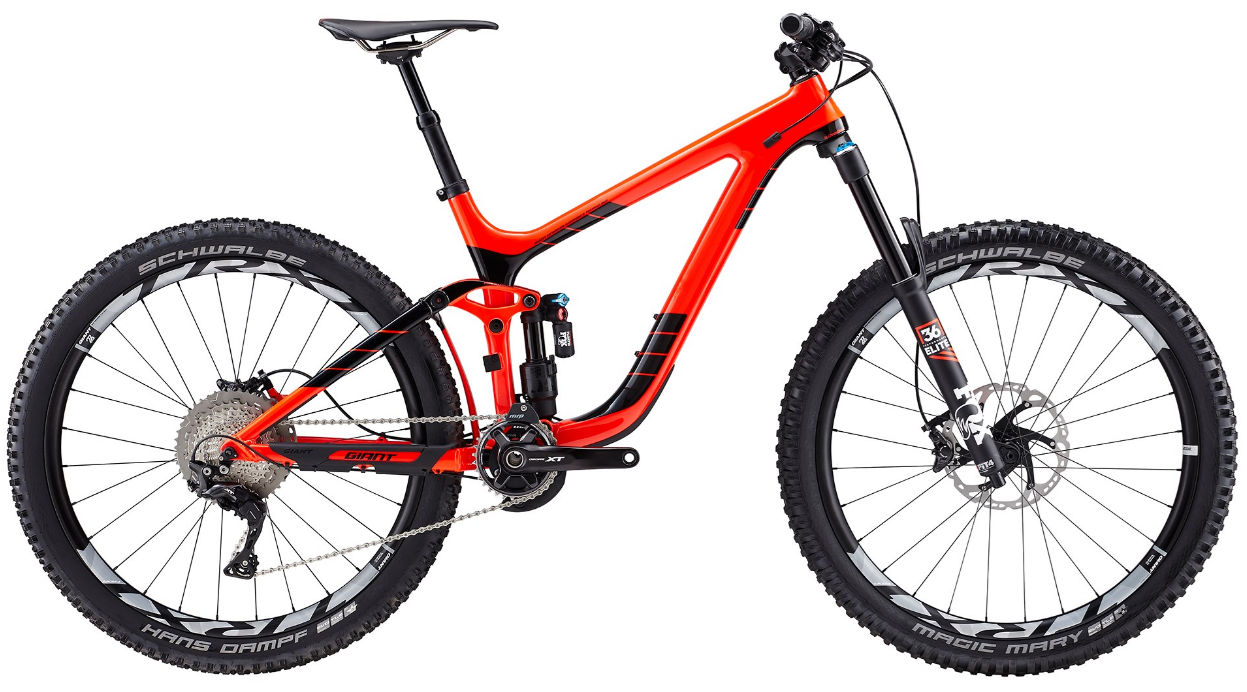

2017 Giant Reign Advanced MKII geometry
Full frame geometry for the 2017 Giant Reign Advanced MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 577 | 444 | 73 | 65 | 94 | 620 | 431 | 714 | 10 | 757 | 434 | 1191 | 46 | 114 |
| S | 577 | 409 | 73 | 65 | 94 | 584 | 380 | 716 | 10 | 724 | 434 | 1158 | 46 | 114 |
| L | 595 | 458 | 73 | 65 | 114 | 640 | 482 | 732 | 10 | 783 | 434 | 1217 | 46 | 114 |
| XL | 604 | 480 | 73 | 65 | 124 | 665 | 507 | 739 | 10 | 808 | 434 | 1242 | 46 | 114 |
All measurements in millimetres unless marked (°) for angles.
