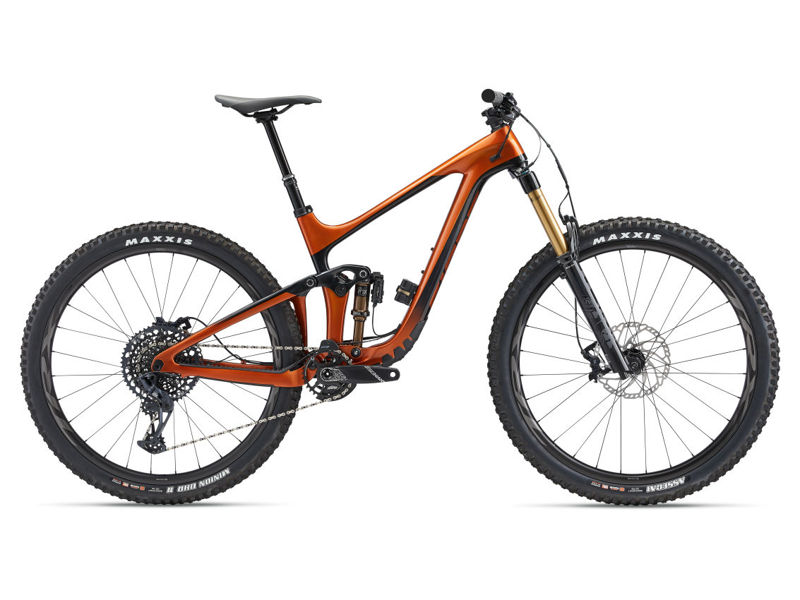

2023 Giant Reign Advance geometry
Full frame geometry for the 2023 Giant Reign Advance, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 622 | 451 | 76.4 | 64.6 | 100 | 601 | 431 | 759 | 27 | 439 | 1220 | 44 | 132.7 |
| S | 622 | 423 | 76.4 | 64.6 | 100 | 574 | 431 | 757 | 27 | 439 | 1191 | 44 | 132.7 |
| L | 631 | 488 | 76.4 | 64.6 | 110 | 640 | 464 | 781 | 27 | 439 | 1262 | 44 | 132.7 |
| XL | 640 | 511 | 76.4 | 64.6 | 120 | 666 | 496 | 804 | 27 | 439 | 1289 | 44 | 132.7 |
All measurements in millimetres unless marked (°) for angles.
