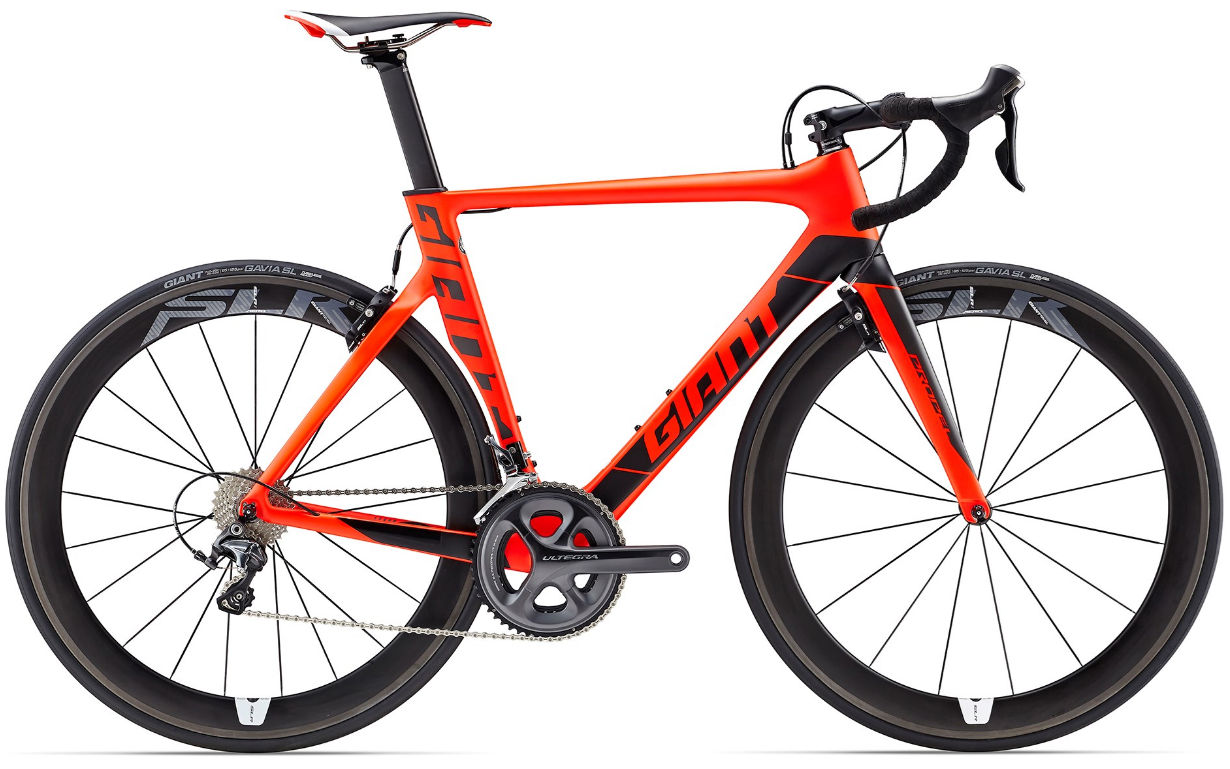

2013 Giant Propel Advanced Pro Gen1 geometry
Full frame geometry for the 2013 Giant Propel Advanced Pro Gen1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517 | 372 | 74.5 | 71 | 120 | 515 | 465 | 742 | 70 | 577 | 405 | 972 | 45 | 73 |
| S | 534 | 377 | 73.5 | 72 | 135 | 535 | 500 | 767 | 70 | 579 | 405 | 974 | 45 | 70 |
| M | 553 | 386 | 73 | 73 | 150 | 555 | 520 | 790 | 70 | 585 | 405 | 980 | 45 | 64 |
| ML | 566 | 391 | 72.5 | 73 | 170 | 570 | 545 | 813 | 65 | 595 | 405 | 991 | 45 | 57 |
| L | 581 | 402 | 72.5 | 73 | 185 | 585 | 575 | 836 | 65 | 610 | 405 | 1006 | 45 | 57 |
| XL | 595 | 412 | 72 | 73 | 200 | 605 | 595 | 849 | 65 | 625 | 405 | 1021 | 45 | 57 |
All measurements in millimetres unless marked (°) for angles.
