2023 Giant Propel Advance geometry

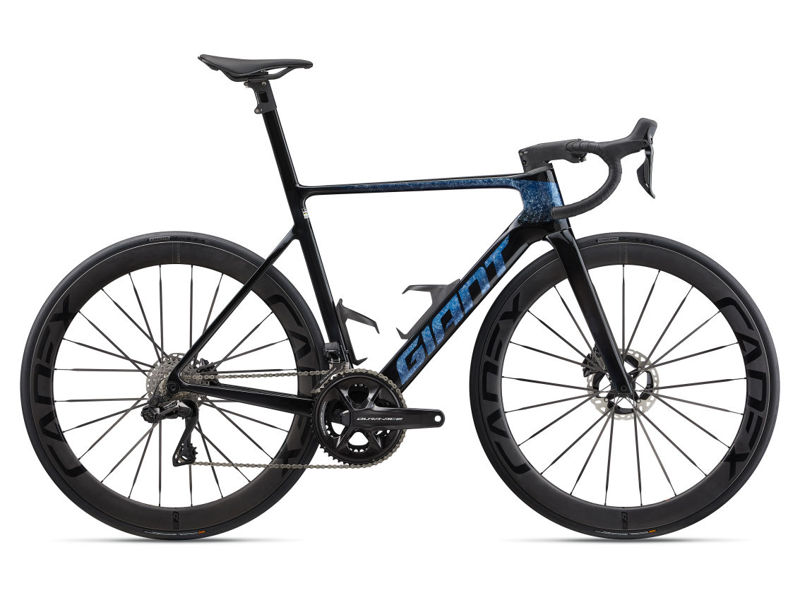

Name: 2023 Giant Propel Advance
Brand: Giant

Full frame geometry for the 2023 Giant Propel Advance, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
XS	517	376	74.5	71	120	520	680	472	70	405	976	45	72.1
S	528	383	73.5	72.3	130	535	710	491	68	405	977	45	64
M	545	388	73	73	145	550	740	509	68	405	980	45	59.2
ML	562	393	73	73	165	565	770	527	65	405	991	45	59.2
L	581	402	73	73	185	580	790	554	65	405	1006	45	59.2
XL	596	412	72	73	200	600	820	567	65	405	1020	45	59.2

All measurements in millimetres unless marked (°) for angles.
