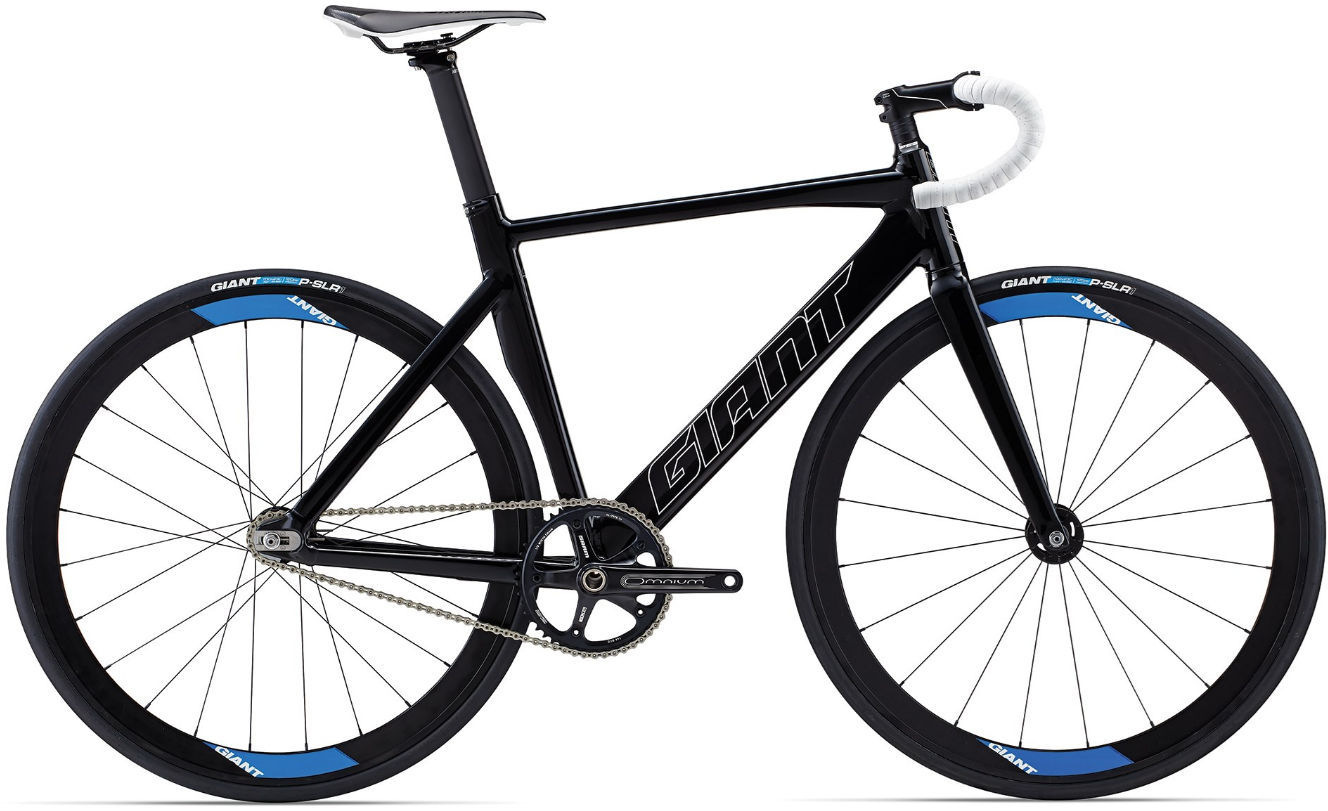

2010 Giant Omnium geometry
Full frame geometry for the 2010 Giant Omnium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 523 | 390 | 74.5 | 73.5 | 135 | 535 | 725 | 400 | 951 |
| M | 539 | 401 | 74.5 | 74 | 150 | 555 | 752 | 400 | 962 |
| ML | 553 | 407 | 74 | 74 | 170 | 565 | 787 | 400 | 974 |
| L | 567 | 412 | 74 | 73.5 | 185 | 580 | 802 | 400 | 994 |
All measurements in millimetres unless marked (°) for angles.
