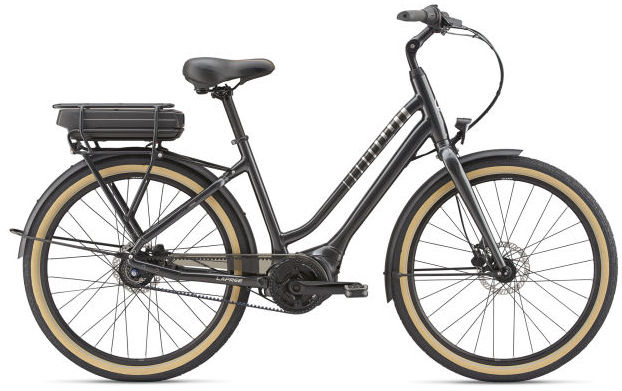

2019 Giant Lafree E+ geometry
Full frame geometry for the 2019 Giant Lafree E+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 607 | 327 | 69 | 69 | 180 | 560 | 380 | 45 | 592 | 470 | 1058 | 44 | 83 |
| M | 621 | 346 | 69 | 69 | 195 | 585 | 458 | 45 | 617 | 470 | 1083 | 44 | 83 |
| L | 640 | 364 | 69 | 69 | 215 | 610 | 508 | 45 | 641 | 470 | 1108 | 44 | 83 |
All measurements in millimetres unless marked (°) for angles.
