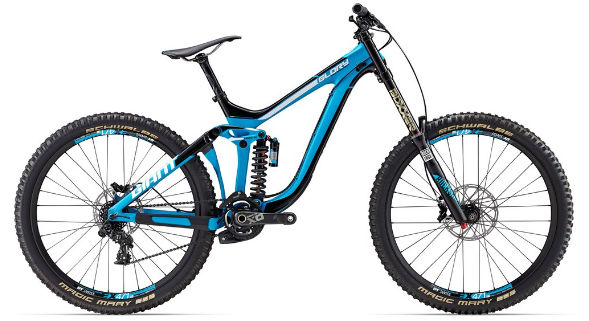

2017 Giant Glory Advanced geometry
Full frame geometry for the 2017 Giant Glory Advanced, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 595 | 426 | 63.6 | 63 | 104 | 584 | 430 | 719 | 6 | 780 | 439 | 1219 | 48 | 129 |
| S | 595 | 410 | 55.3 | 63 | 104 | 569 | 410 | 724 | 6 | 768 | 439 | 1207 | 48 | 129 |
| L | 599 | 461 | 63.6 | 63 | 109 | 620 | 440 | 721 | 6 | 818 | 439 | 1257 | 48 | 129 |
| XL | 599 | 476 | 63.6 | 63 | 109 | 635 | 450 | 729 | 6 | 834 | 439 | 1273 | 48 | 129 |
All measurements in millimetres unless marked (°) for angles.
