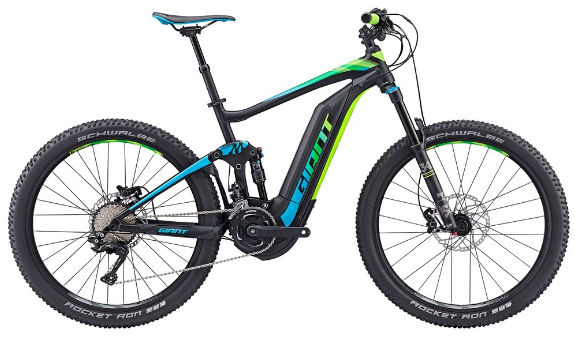

2017 Giant Full-E+ geometry
Full frame geometry for the 2017 Giant Full-E+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 610 | 403 | 73 | 67 | 125 | 590 | 450 | 770 | 12 | 705 | 463 | 1168 | 42 |
| S | 610 | 378 | 73 | 67 | 125 | 565 | 431 | 770 | 12 | 680 | 463 | 1143 | 42 |
| L | 624 | 419 | 73 | 67 | 140 | 610 | 500 | 810 | 12 | 727 | 463 | 1190 | 42 |
| XL | 642 | 438 | 73 | 67 | 160 | 635 | 530 | 830 | 12 | 754 | 463 | 1217 | 42 |
All measurements in millimetres unless marked (°) for angles.
