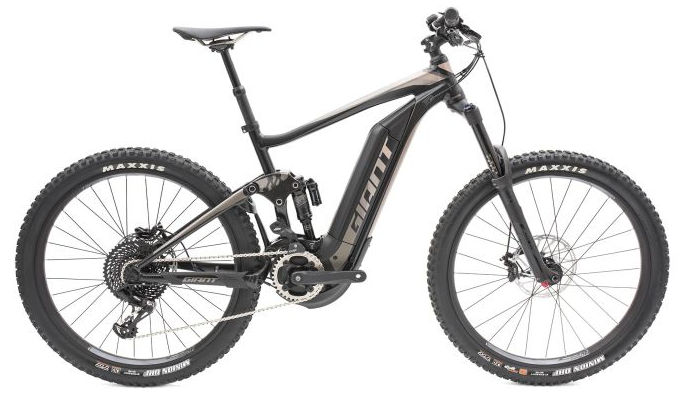

2018 Giant Full-E + SX Pro geometry
Full frame geometry for the 2018 Giant Full-E + SX Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 621 | 392 | 72.5 | 66.5 | 125 | 590 | 450 | 5 | 718 | 463 | 1181 | 51 | 103 |
| S | 621 | 367 | 72.5 | 66.5 | 125 | 565 | 431 | 5 | 693 | 463 | 1156 | 51 | 103 |
| L | 635 | 408 | 72.5 | 66.5 | 140 | 610 | 500 | 5 | 740 | 463 | 1203 | 51 | 103 |
| XL | 653 | 427 | 72.5 | 66.5 | 160 | 635 | 530 | 5 | 767 | 463 | 1230 | 51 | 103 |
All measurements in millimetres unless marked (°) for angles.
