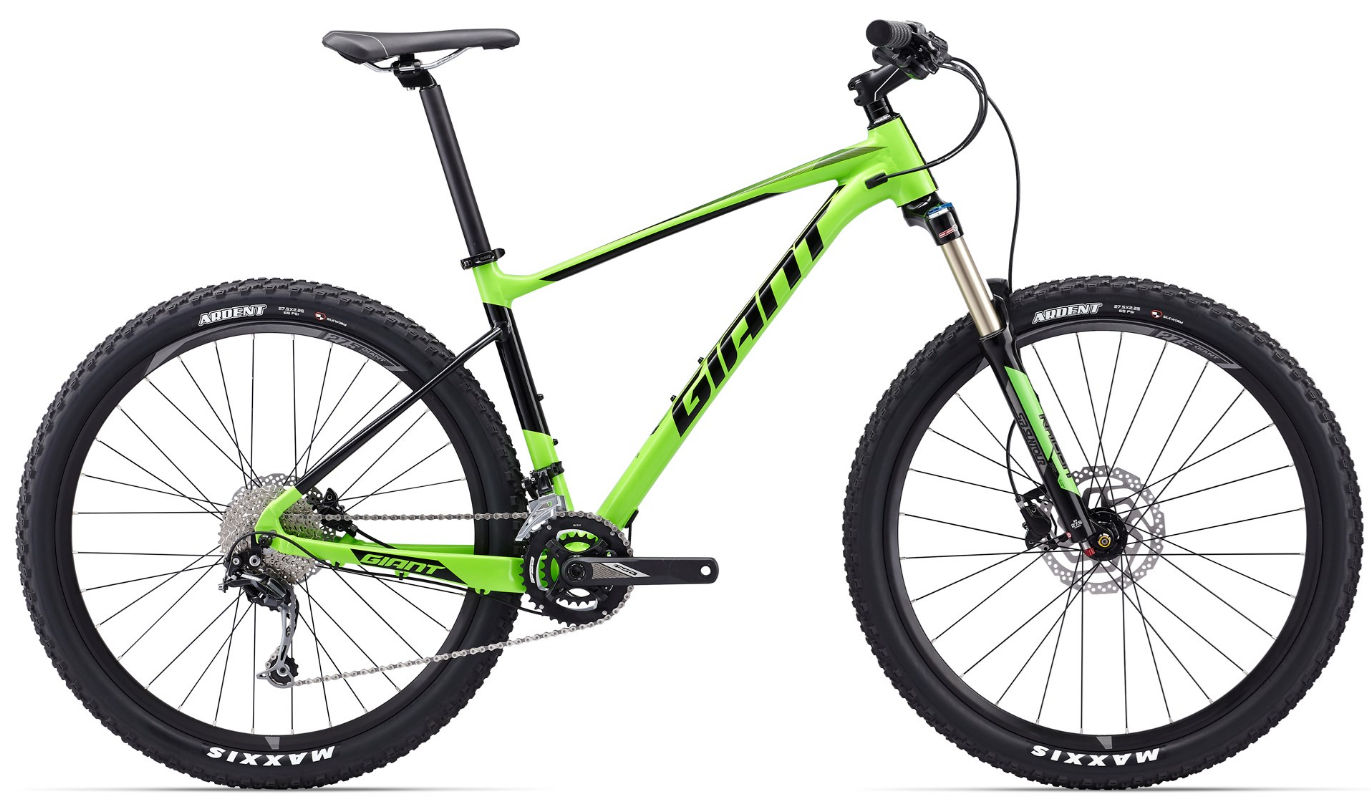

2017 Giant Fathom geometry
Full frame geometry for the 2017 Giant Fathom, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 584 | 392 | 73.5 | 67 | 95 | 565 | 370 | 697 | 45 | 668 | 425 | 1089 | 42 | 105 |
| S | 588 | 411 | 73.5 | 67 | 100 | 585 | 390 | 714 | 45 | 688 | 425 | 1109 | 42 | 105 |
| M | 598 | 428 | 73.5 | 67 | 110 | 605 | 445 | 743 | 45 | 710 | 425 | 1131 | 42 | 105 |
| L | 611 | 444 | 73.5 | 67 | 125 | 625 | 480 | 753 | 45 | 732 | 425 | 1153 | 42 | 105 |
| XL | 625 | 460 | 73.5 | 67 | 140 | 645 | 530 | 786 | 45 | 753 | 425 | 1174 | 42 | 105 |
All measurements in millimetres unless marked (°) for angles.
