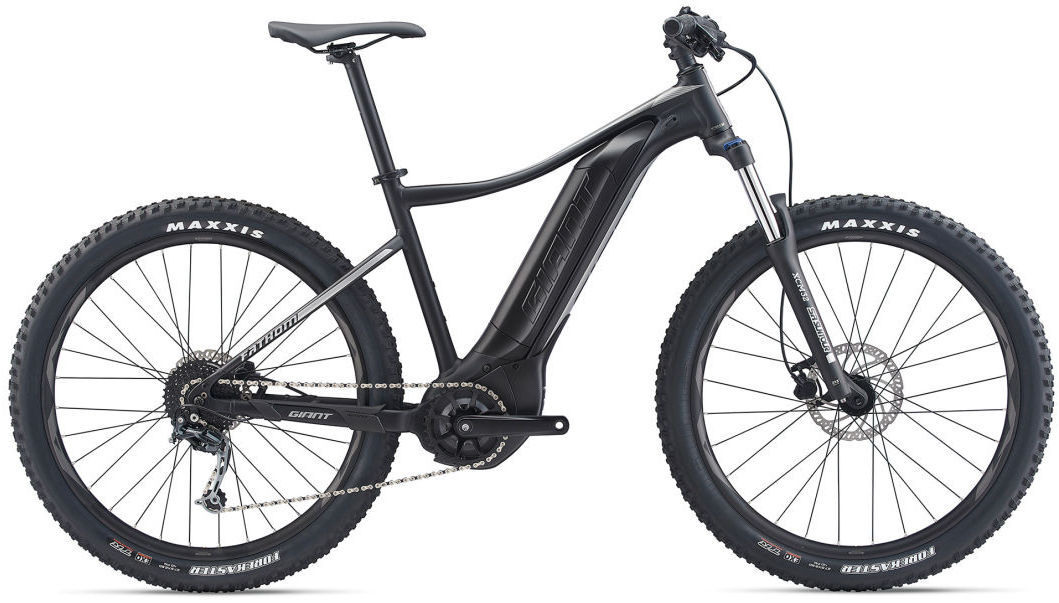

2020 Giant Fathom E+ geometry
Full frame geometry for the 2020 Giant Fathom E+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 617 | 386 | 73 | 68 | 110 | 575 | 405 | 753 | 45 | 669 | 470 | 1135 | 46 | 101 |
| M | 622 | 405 | 73 | 68 | 115 | 595 | 455 | 760 | 45 | 690 | 470 | 1156 | 46 | 101 |
| L | 645 | 417 | 73 | 68 | 140 | 615 | 505 | 787 | 45 | 712 | 470 | 1178 | 46 | 101 |
| XL | 654 | 435 | 73 | 68 | 150 | 635 | 535 | 791 | 45 | 733 | 470 | 1199 | 46 | 101 |
All measurements in millimetres unless marked (°) for angles.
