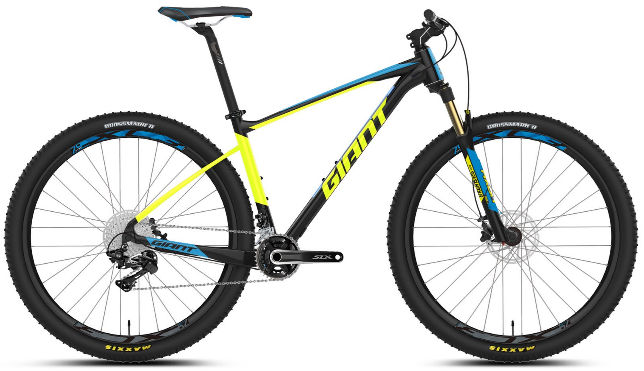

2017 Giant Fathom 29er geometry
Full frame geometry for the 2017 Giant Fathom 29er, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 603 | 406 | 73.5 | 69 | 95 | 585 | 390 | 730 | 55 | 664 | 442 | 1100 | 42 | 98 |
| M | 608 | 425 | 73.5 | 69 | 100 | 605 | 445 | 756 | 55 | 685 | 442 | 1121 | 42 | 98 |
| L | 622 | 441 | 73.5 | 69 | 115 | 625 | 480 | 765 | 55 | 706 | 442 | 1142 | 42 | 98 |
| XL | 636 | 457 | 73.5 | 69 | 130 | 645 | 530 | 790 | 55 | 727 | 442 | 1163 | 42 | 98 |
All measurements in millimetres unless marked (°) for angles.
