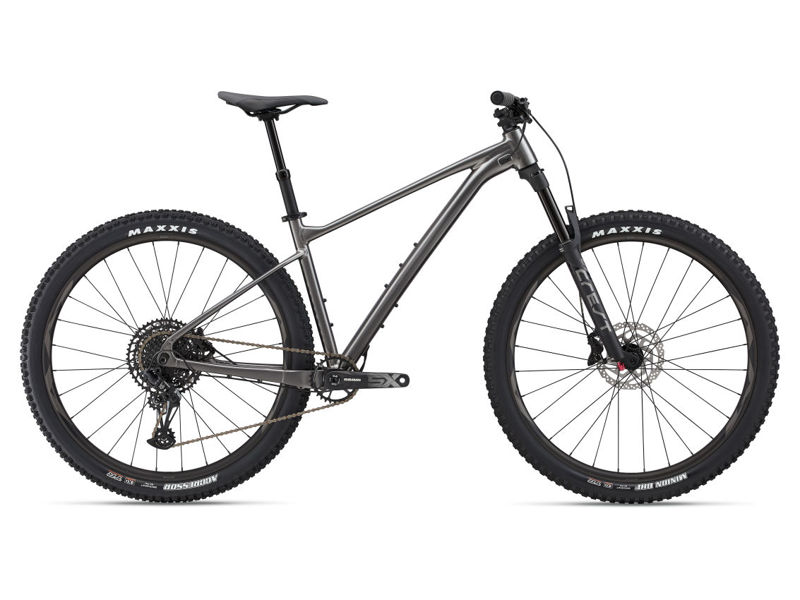

2022 Giant FATHOM 29 geometry
Full frame geometry for the 2022 Giant FATHOM 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 622 | 445 | 75 | 66 | 95 | 612 | 430 | 745 | 60 | 435 | 1174 | 44 | 122 |
| S | 622 | 425 | 75 | 66 | 95 | 592 | 380 | 730 | 60 | 435 | 1154 | 44 | 122 |
| L | 631 | 470 | 75 | 66 | 105 | 639 | 465 | 765 | 60 | 435 | 1203 | 44 | 122 |
| XL | 640 | 490 | 75 | 66 | 115 | 662 | 495 | 790 | 60 | 435 | 1227 | 44 | 122 |
All measurements in millimetres unless marked (°) for angles.
