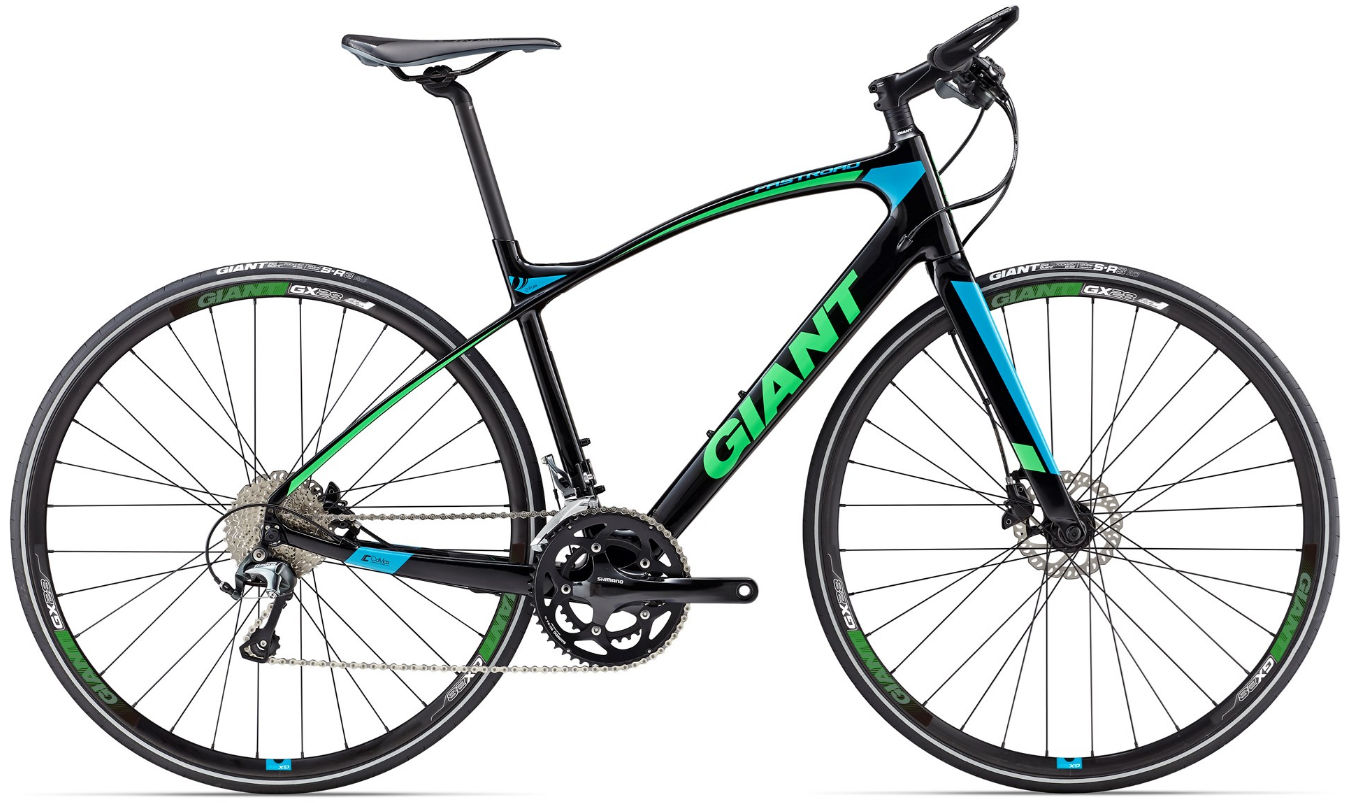

2017 Giant Fastroad CoMax geometry
Full frame geometry for the 2017 Giant Fastroad CoMax, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 513 | 378 | 73.5 | 71 | 105 | 530 | 694 | 425 | 997 |
| S | 539 | 375 | 73.5 | 71.5 | 130 | 535 | 706 | 425 | 999 |
| M | 564 | 377 | 73 | 72 | 155 | 550 | 709 | 425 | 1005 |
| ML | 588 | 395 | 73 | 72 | 180 | 575 | 726 | 425 | 1030 |
| L | 609 | 403 | 72.5 | 72.5 | 200 | 595 | 753 | 425 | 1039 |
| XL | 633 | 409 | 72 | 72.5 | 225 | 615 | 768 | 425 | 1053 |
All measurements in millimetres unless marked (°) for angles.
