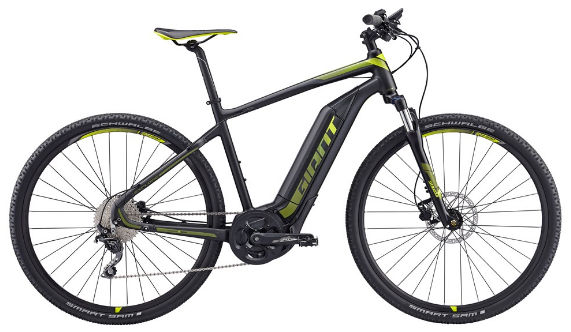

2017 Giant Explore E+ geometry
Full frame geometry for the 2017 Giant Explore E+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 610 | 395 | 74 | 69.5 | 130 | 570 | 435 | 750 | 60 | 664 | 455 | 1112 | 42 | 91 |
| M | 619 | 400 | 73 | 69.5 | 140 | 590 | 485 | 580 | 60 | 673 | 455 | 1121 | 42 | 91 |
| L | 633 | 416 | 73 | 69.5 | 155 | 610 | 535 | 610 | 60 | 694 | 455 | 1142 | 42 | 91 |
| XL | 648 | 432 | 73 | 69.5 | 170 | 630 | 585 | 640 | 60 | 714 | 455 | 1163 | 42 | 91 |
All measurements in millimetres unless marked (°) for angles.
