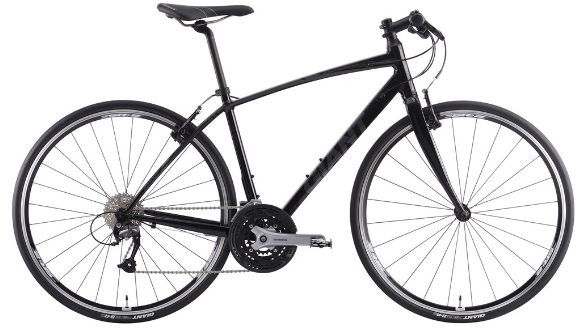

2017 Giant Escape RX geometry
Full frame geometry for the 2017 Giant Escape RX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 524 | 400 | 74 | 70 | 100 | 550 | 682 | 451 | 1069 |
| S | 538 | 406 | 73.5 | 70 | 115 | 565 | 713 | 451 | 1080 |
| M | 556 | 410 | 73 | 71 | 130 | 580 | 755 | 451 | 1081 |
| L | 585 | 416 | 73 | 71 | 160 | 595 | 796 | 451 | 1097 |
| XL | 613 | 423 | 73 | 71 | 190 | 610 | 838 | 451 | 1113 |
All measurements in millimetres unless marked (°) for angles.
