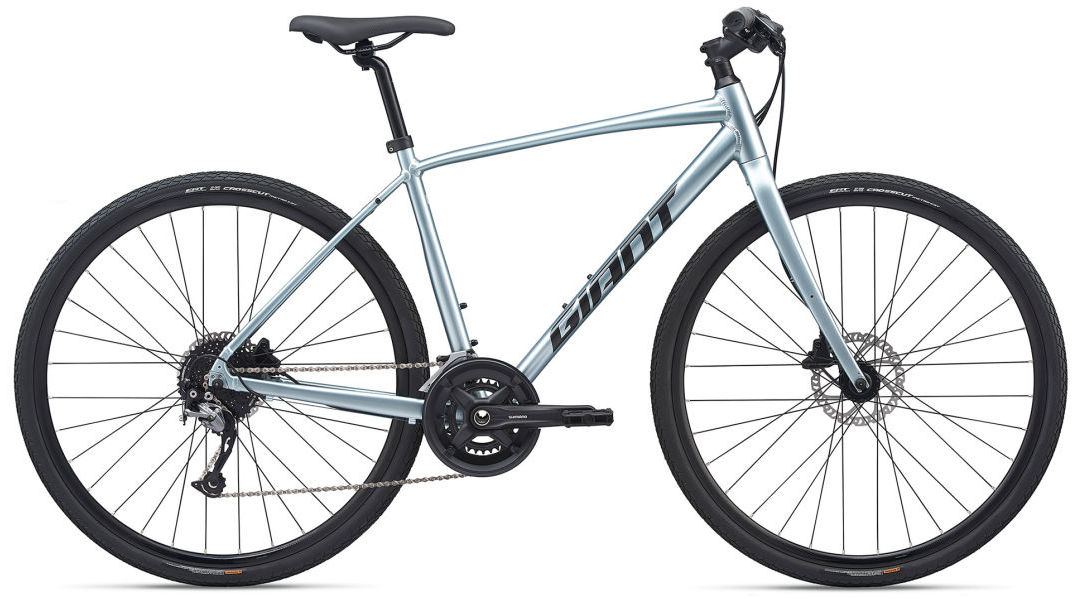

2019 Giant Escape Disc geometry
Full frame geometry for the 2019 Giant Escape Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 538 | 406 | 73.5 | 70 | 115 | 565 | 714 | 629 | 445 | 1074 |
| M | 556 | 410 | 73 | 71 | 130 | 580 | 754 | 630 | 445 | 1075 |
| L | 585 | 416 | 73 | 71 | 160 | 595 | 799 | 646 | 445 | 1091 |
| XL | 613 | 423 | 73 | 71 | 190 | 610 | 842 | 662 | 445 | 1107 |
All measurements in millimetres unless marked (°) for angles.
