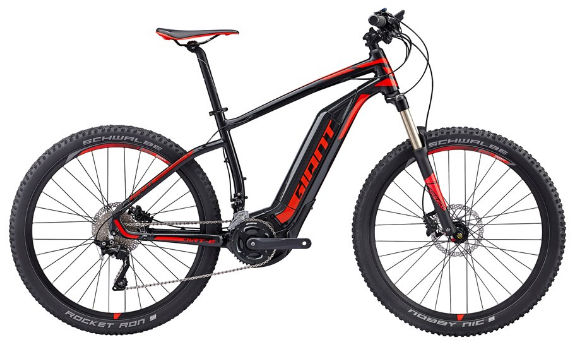

2017 Giant Dirt-E geometry
Full frame geometry for the 2017 Giant Dirt-E, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 605 | 405 | 73 | 69.5 | 135 | 590 | 455 | 770 | 35 | 679 | 455 | 1132 | 42 | 91 |
| S | 605 | 385 | 73 | 69.5 | 135 | 570 | 405 | 750 | 35 | 659 | 455 | 1112 | 42 | 91 |
| L | 623 | 419 | 73 | 69.5 | 155 | 610 | 505 | 810 | 35 | 700 | 455 | 1153 | 42 | 91 |
| XL | 638 | 435 | 73 | 69.5 | 170 | 630 | 535 | 830 | 35 | 721 | 455 | 1174 | 42 | 91 |
All measurements in millimetres unless marked (°) for angles.
