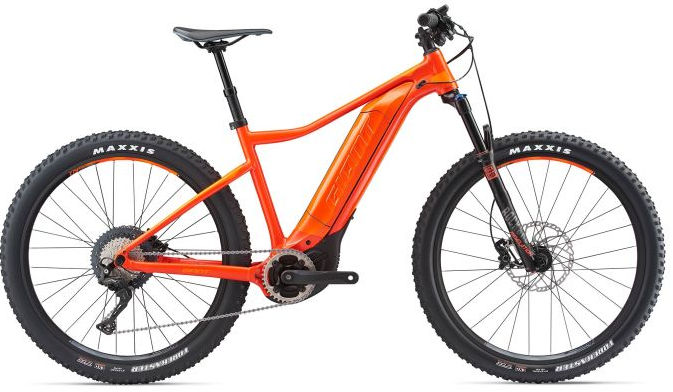

2018 Giant Dirt-E Pro geometry
Full frame geometry for the 2018 Giant Dirt-E Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 391 | 73 | 68 | 110 | 575 | 405 | 45 | 667 | 470 | 1133 | 46 | 99 |
| M | 604 | 410 | 73 | 68 | 115 | 595 | 455 | 45 | 688 | 470 | 1154 | 46 | 99 |
| L | 623 | 424 | 73 | 68 | 135 | 615 | 505 | 45 | 710 | 470 | 1176 | 46 | 99 |
| XL | 637 | 440 | 73 | 68 | 150 | 635 | 535 | 45 | 731 | 470 | 1197 | 46 | 99 |
All measurements in millimetres unless marked (°) for angles.
