2012 Giant · RD

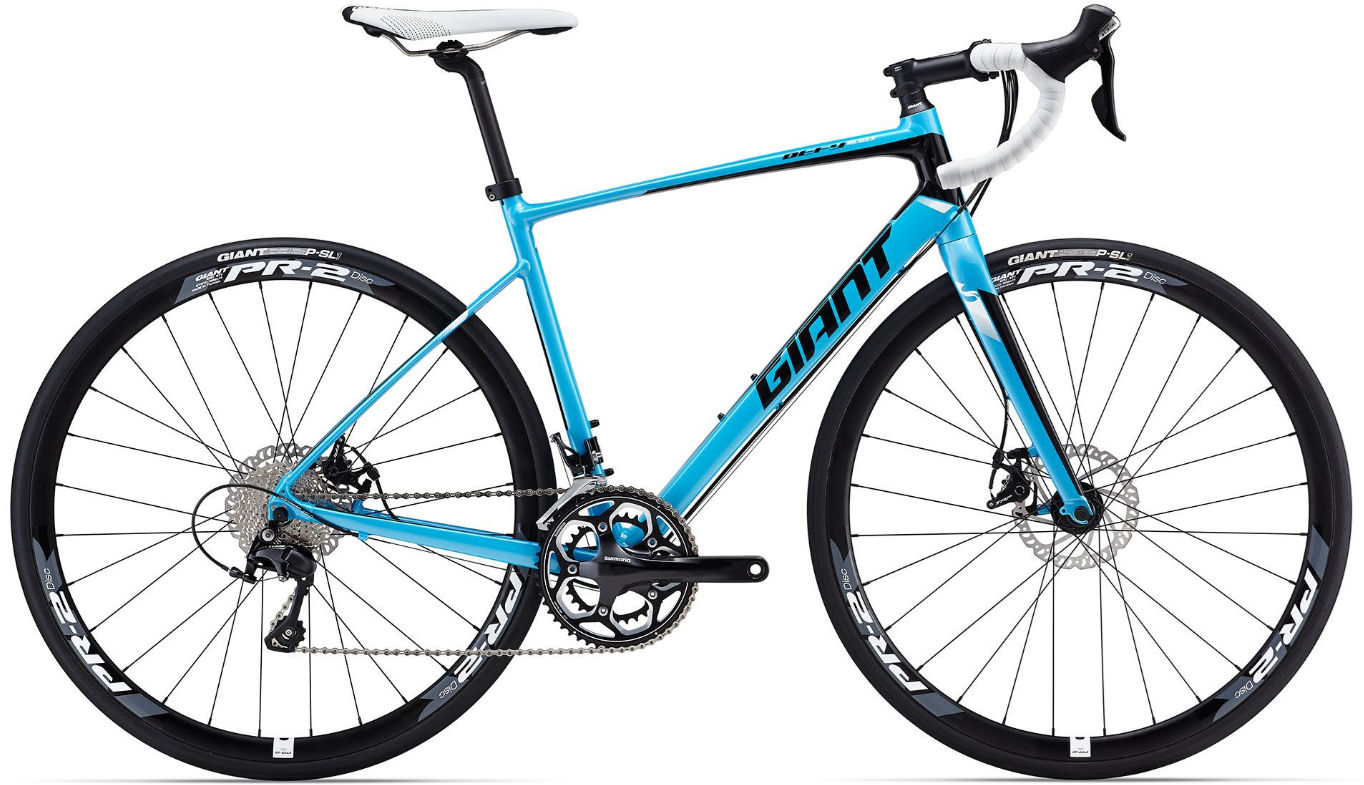

2012 Giant Defy Disc geometry
Full frame geometry for the 2012 Giant Defy Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS/41 | 523 | 365 | 74 | 71 | 125 | 515 | 737 | 563 | 420 | 983 |
| S/44.5 | 546 | 373 | 74 | 72 | 145 | 530 | 754 | 570 | 420 | 990 |
| M/48 | 567 | 377 | 73.5 | 72.5 | 165 | 545 | 777 | 575 | 420 | 995 |
| ML/51.5 | 586 | 381 | 73 | 72.5 | 190 | 560 | 790 | 587 | 420 | 1007 |
| L/53.5 | 605 | 390 | 73 | 72.5 | 210 | 575 | 813 | 602 | 420 | 1022 |
| XL/56.5 | 624 | 398 | 72.5 | 72.5 | 230 | 595 | 833 | 617 | 420 | 1037 |
All measurements in millimetres unless marked (°) for angles.
