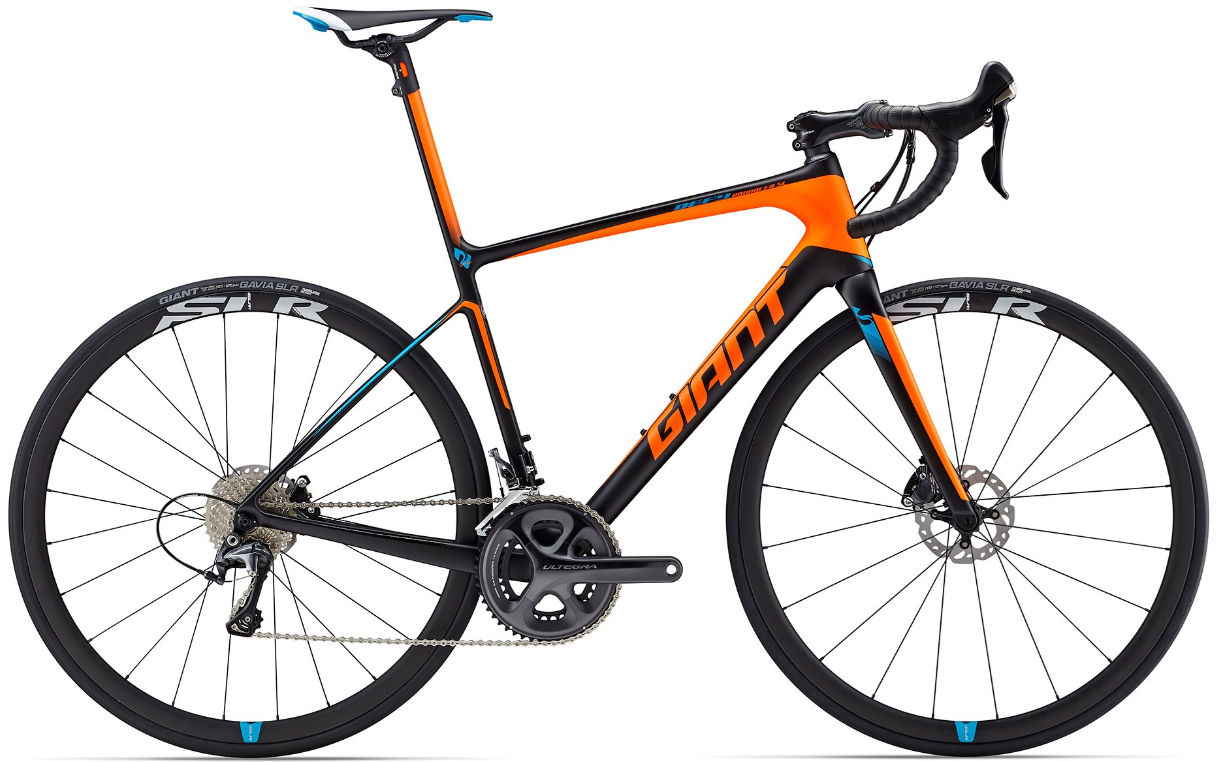

2014 Giant Defy Advanced SL geometry
Full frame geometry for the 2014 Giant Defy Advanced SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 523 | 365 | 74.5 | 71 | 125 | 515 | 410 | 737 | 70 | 573 | 420 | 983 | 45 | 70 |
| S | 546 | 373 | 74 | 72 | 145 | 530 | 445 | 754 | 70 | 580 | 420 | 990 | 45 | 64 |
| M | 567 | 377 | 73.5 | 72.5 | 165 | 545 | 480 | 777 | 70 | 585 | 420 | 995 | 45 | 60 |
| ML | 586 | 381 | 73 | 72.5 | 190 | 560 | 515 | 790 | 65 | 596 | 420 | 1007 | 45 | 60 |
| L | 605 | 390 | 73 | 72.5 | 210 | 575 | 535 | 813 | 65 | 611 | 420 | 1022 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
