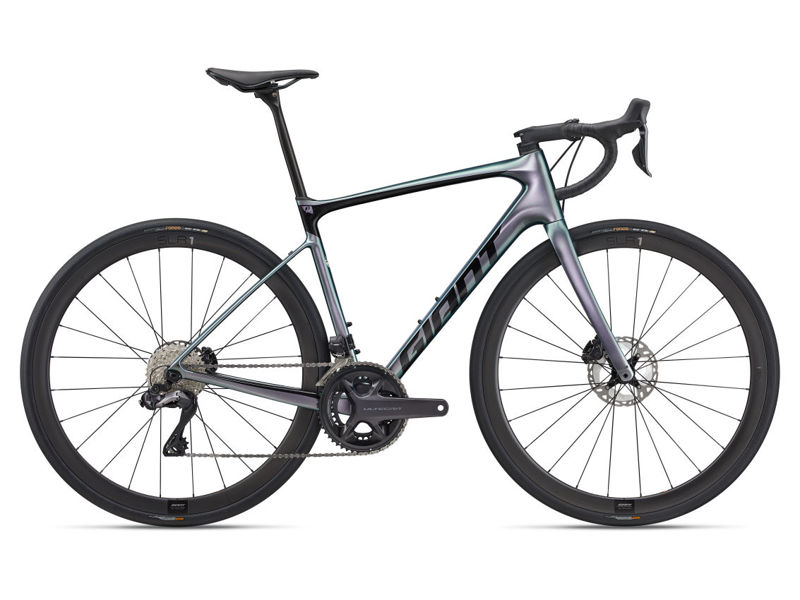

2023 Giant Defy Advance Pro geometry
Full frame geometry for the 2023 Giant Defy Advance Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 522 | 370 | 74.5 | 70.5 | 120 | 515 | 75 | 995 | 50 | 71.3 |
| S | 546 | 374 | 74 | 71.8 | 140 | 530 | 75 | 995 | 50 | 63.1 |
| M | 567 | 377 | 73.5 | 72.5 | 160 | 545 | 75 | 998 | 50 | 58.2 |
| ML | 586 | 381 | 73 | 72.5 | 185 | 560 | 70 | 1010 | 50 | 58.2 |
| L | 605 | 390 | 73 | 72.5 | 205 | 575 | 70 | 1025 | 50 | 58.2 |
| XL | 624 | 398 | 72.5 | 72.5 | 225 | 595 | 70 | 1040 | 50 | 58 |
All measurements in millimetres unless marked (°) for angles.
